Part Number: BUJ403BX



MFG: PHILIPS

Package Cooled: TO-



Description: High-voltage, high-speed planar-passivated npn power switching transistor in a plastic full-pack envelope intended for ...


Urgent Purchase

BUJ403BX General Description


High-voltage, high-speed planar-passivated npn power switching transistor in a plastic full-pack envelope intended for use in high frequency electronic lighting ballast applications, converters, inverters, switching regulators, motor control systems, etc.

BUJ403BX Maximum Ratings

SYMBOL PARAMETER CONDITIONS
MIN.
MAX.
UNIT

VCESM
VCEO
VCBO
VEBO
IC
ICM
IB
IBM
Ptot
Tstg
Tj

Collector to emitter voltage
Collector to emitter voltage (open base)
Collector to base voltage (open emitter)
Emitter-base voltage (open collector)
Collector current (DC)
Collector current peak value
Base current (DC)
Base current peak value
Total power dissipation
Storage temperature
Junction temperature

 VBE = 0V

Ths 25
-
-
-
16
-
-
-
-
-
-65
-
1200
525
1200
-
6
10
3
5
32
150
150
V
V
V
V
A
A
A
A
W

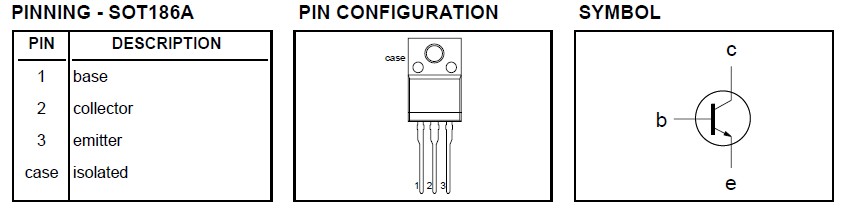

BUJ403BX Connection Diagram

BUJ403BX Connection Diagram
