Features:

Vertical power DMOS output
stage
Low on-state resistance
Overload protection against
over temperature
Overload protection against
short circuit load
Latched overload protection
reset by input
10 V input level
Low threshold voltage
also allows 5 V control
Control of power MOSFET
and supply of overload
protection circuits
derived from input
ESD protection on input pin
Overvoltage clamping for turn
off of inductive loads

Application

General purpose switch for driving
*lamps
*motors
*solenoids
*heaters
in automotive systems and other
applications.

Pinout

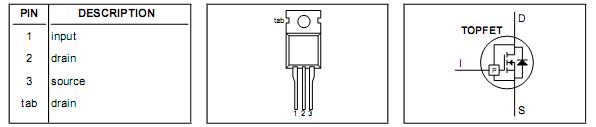

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
V_DSS	Continuous drain-source voltage¹	V_IS=0V	-	50	V
V_IS	Continous iput voltage	-	0	11	V
I_D	Continous drain current	T_mb25;VIS=10V	-	15	A
I_D	Continous drain current	T_mb100;VIS=10V	-	9.5	A
I_DRM	Repetitive peak on-state drain current	T_mb25;VIS=10V	-	60	A
P_D	Total power dissipation	T_mb25	-	40	W
T_stg	Storage temperature	-	-55	150
T_j	Continuous junction temperature²	normal operation	-	150
T_sold	Lead temperature	during soldering	-	250

Description

Monolithic temperature and overload protected logic level power MOSFET BUK100-50GS in TOPFET2 technology assembled in a 3 pin plastic package.
