BUK106-50L/S

Features: Vertical power DMOS output stageLow on-state resistanceLogic and protection supply from separate pinLow operating supply currentOverload protection against over temperatureOverload protection against short circuit loadLatched overload protection reset by protection supplyProtection circu...

product image

BUK106-50L/S Picture
See larger image
SeekIC No. : 004304150 Detail

BUK106-50L/S: Features: Vertical power DMOS output stageLow on-state resistanceLogic and protection supply from separate pinLow operating supply currentOverload protection against over temperatureOverload protect...

BUK106-50L/S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BUK106-50L/S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Vertical power DMOS output stage
Low on-state resistance
Logic and protection supply from separate pin
Low operating supply current
Overload protection against over temperature
Overload protection against short circuit load
Latched overload protection reset by protection supply
Protection circuit condition indicated by flag pin
5 V logic compatible input level
Separate input pin for higher frequency drive
ESD protection on input, flag and protection supply pins
Over voltage clamping for turn off of inductive loads
Both linear and switching operation are possible


Application

General controller for driving
lamps
motors
solenoids
heaters


Pinout

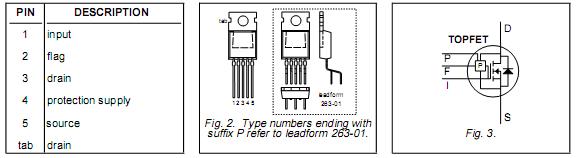

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
  Voltages
VDSS  Continuous off-state drain source voltge2 VIS = 0 V - 50 V
VIS  Continuous input voltage - 0 11 V
VFS  Continous flag voltage - 0 11 V
VPS  Continuous supply voltage - 0 11 V
  Currents                       VIS = - 8 5 V
ID  Contiuous drain current  Tmb25 - 50 45 A
ID  Continuous drain current  Tmb100 - 31 28 A
IDRM  Repetitive peak on-state drain current  Tmb25 - 200 180 A
  Thermal
Ptot Total power dissiption Tmb = 25 - 125 W
Tstg Storage temperature - -55 150
Tj Junction temperature2 continuous - 150
Tsold Lead temperature during soldering - 250



Description

Monolithic temperature and overload protected logic level power MOSFET BUK106-50L/S in a 5 pin plastic envelope, intended as a general purpose switch for automotive systems and other applications.
