Features:

Vertical power DMOS output stage
Low on-state resistance
Low operating supply current
Overtemperature protection
Overload protection against short circuit load with drain current limiting
Latched overload protection reset by protection supply
Protection circuit condition indicated by flag pin
Off-state detection of open circuit load indicated by flag pin
5 V logic compatible input level
Integral input resistors.
ESD protection on all pins
Over voltage clamping

Pinout

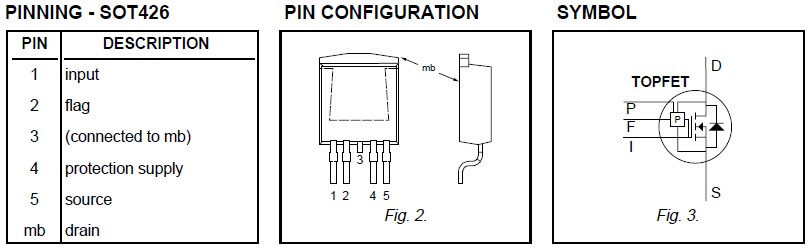

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
V_DS	Continuous voltage Drain source voltage¹	V_IS = 0 V	-	50	V
I_D I_I I_F I_P	Continuous currents Drain current Input current Flag current Protection supply current	V_PS = 5 V; Tmb = 25°C V_PS = 0 V; Tmb = 80°C - - -	- - -5 -5 -5	self -limited 12 5 5 5	A A mA mA mA
P_tot T_stg T_j T_sold	Thermal Total power dissipation Storage temperature Junction temperature² Mounting base temperature	T_mb = 25°C - continuous during soldering	- -55 - -	52 175 150 260	W °C °C °C

Description

Monolithic temperature and overload protected logic level power MOSFET BUK111-50GL in a 5 pin plastic SMD envelope, intended as a low side switch for automotive applications.
