Features:

Very low quiescent current
Power TrenchMOS
Overtemperature protection
Over and undervoltage protection
Reverse battery protection
Low charge pump noise
Loss of ground protection
CMOS logic capability
Negative load clamping
Overload protection
ESD protection for all pins
Diagnostic status indication
Operating voltage down to 5.5 V
Current limitation.


Application

12 and 24V grounded loads
Inductive loads
High inrush current loads
Replacement for relays and fuses.


Pinout

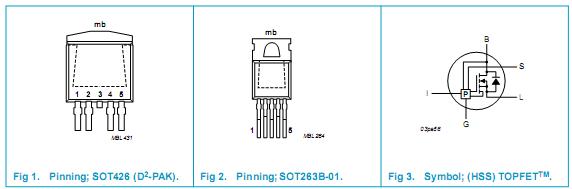

Connection Diagram


Specifications

 Symbol  Parameter  Conditions  Min  Max  Unit
 VBG  continuous supply coltage    -  50  V
 IL  continuous load current  Tmb112  -  8.5  A
 Ptot  total power dissipation  Tmb25  -  48  W
 Tstg  storage temperature    55  +175
 Tj  junction temperature    -  150
 Tmb  mounting base temperature  during soldering(10s)  -  260
Reverse battery voltage
 VBG  continuous reverse voltage [1]    -  16  V
 VBG  repetitive reverse voltage    -  32  V
External resistor
 RI  external resistor [2]    3.3  -  k
 RS [3]    3.3  -  k
Input current
 II  continuous current    -5  +5  mA
 II  repetitive peak current  0.1; tp=300s  -50  +50  mA
Status current
 IS  continuous current    -5  +5  mA
 IS  reperirive peak current  0.1; tp=300s  -50  +50  mA
Inductive load clamping
 EBL(CL)  non-reperirive clamping energy  Tj=150 prior to turn-off; IL=2A  -  100  mJ
Electrostatic discharge
 Vesd  electrostatic discharge voltage  Human body model; C=100pF; R=1.5k  -  2  kV


[1]  Reverse battery voltage is only allowed with external resistors to limit the input and status currents to a safe value. The connected load must limit the reverse current. The internal groud resistor limits the reverse battery groud current.
[2]  To limit input current during reverse battery and transient overvoltages.
[3]  To limit status current during reverse battery and transient overvoltages.










Description

Monolithic temperature and overload protected single high-side power switch based on TOPFET BUK208-50Y Trench technology in a 5-pin surface mount or leadform plastic package.
