BUK217-50YT General Description


Monolithic single channel high side protected power switch in TOPFET2 technology assembled in a 5 pin plastic surface mount package.

BUK217-50YT Maximum Ratings

 SYMBOL  PARAMETER  CONDITIONS  MIN.  MAX.  UNIT
 VBG  Continuous supply voltage    0  50  V
 IL  Continuous load current  Tmb140  -  10  A
 PD  Total power dissipation  Tmb25  -  115  W
 Tstg  Storage temperature    -55  175
 Tj  Continuous junction temperature1    -  150
 Tsold  Mounting base temperature  during soldering  -  260
   Reverse battery voltages2
 -VBG  Continuous reverse voltage    -  16  V
 -VBG  Peak reverse voltage    -  32  V
   Application information
 RI, RS  External resistors3  to limit input, status currents  3.2  -  k
   Input and status
 II, IS  Continuous currents    -5  5  mA
 II, IS  Repetitive peak currents  0.1, tp=300s  -50  50  mA
   Inductive load clamping  IL=10A, VBG=16V
 EBL  Non-repetitive clamping energy  Tj=150 prior to turn-off  -  460  mJ

BUK217-50YT Features

Vertical power TrenchMOS
Low on-state resistance
CMOS logic compatible
Very low quiescent current
Latched overtemperature protection
Load current limiting at reduced level
Short circuit load detection
Overvoltage and undervoltage shutdown with hysteresis
Diagnostic status indication
Voltage clamping for turn off of inductive loads
ESD protection on all pins
Reverse battery, overvoltage and transient protection

BUK217-50YT Typical Application

General controller for driving lamps, motors, solenoids, heaters.

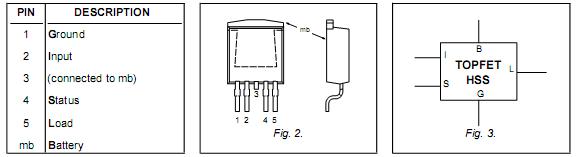

BUK217-50YT Connection Diagram
