BUK218-50DY General Description


Monolithic dual channel high side protected power switch in TOPFET2 technology assembled in a 7 pin plastic surface mount package.

BUK218-50DY Maximum Ratings

 SYMBOL  PARAMETER  CONDITIONS  MIN.  MAX.  UNIT
 VBG  Continuous supply voltage    0  50  V
 IL  Continuous load current per channel  Tmb135  -  8  A
 PD  Total power dissipation  Tmb25  -  83.3  W
 Tstg  Storage reperature    -55  175
 Tj  Continuous junction temperature1    -40  150
   Reverse battery voltages2
 VGB  Continuous reverse voltage    -  16  V
 VGB  Peak reverse voltage    -  32  V
   Application information
 RI, RS  Extemal resistors3  to linit input, status currents  3.2  -  k
   Input and status currents
 II  Continuous input current    -5  5  mA
 IS  Continuous status current    -5  5  mA
 II  Repetitive peak input current  0.1, tp=300s  -50  50  mA
 IS  Repetitive peak status current  0.1, tp=300s  -50  50  mA
   Inductive load clamping  VBG=13V, IL=8A
 EBL  Non-repetitive clamping energy(one channnel)  Tj=150 prior to turn-off  -  150  mJ

BUK218-50DY Features

Vertical power TrenchMOS
Low on-state resistance
CMOS logic compatible
Very low quiescent current
Overtemperature protection
Load current limiting
Latched overload and short circuit protection
Overvoltage and undervoltage shutdown with hysteresis
Off-state open circuit load detection
Diagnostic status indication
Voltage clamping for turn off of inductive loads
ESD protection on all pins
Reverse battery, overvoltage and transient protection

BUK218-50DY Typical Application

General purpose switch for driving automotive lamps, motors, solenoids, heaters.

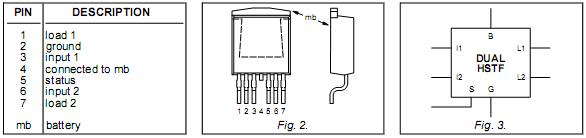

BUK218-50DY Connection Diagram
