BUK553-48C

PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VDS Drain-source voltage continuous - 30 V VDG Drain-gate voltage continuous - 30 V ±VGS Gate-source voltage - - 15 V ID Drain current(DC) Tmb=25 - 21 A ID Drain current(DC) Tmb=100 - 1...

product image

BUK553-48C Picture
See larger image
SeekIC No. : 004304331 Detail

BUK553-48C: PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VDS Drain-source voltage continuous - 30 V VDG Drain-gate voltage continuous - 30 V ±VGS Gate-source vol...

BUK553-48C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BUK553-48C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

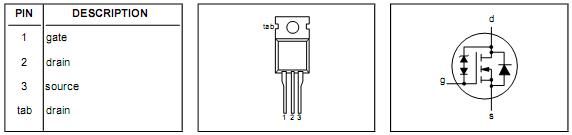

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDS Drain-source voltage continuous - 30 V
VDG Drain-gate voltage continuous - 30 V
±VGS Gate-source voltage - - 15 V
ID Drain current(DC) Tmb=25 - 21 A
ID Drain current(DC) Tmb=100 - 15 A
ICM Drain current (pulse peak value) Tmb=25 - 84 A
Ptot Total power dissipation Tmb=25 - 75 W
Tstg Stoage temperature - -55 175
Tj Junction temperature - -55 175



Description

ProtectedN-channelenhancement modelogiclevelfield-effectpower transistor BUK553-48C inaplasticenvelope.
Thedeviceisintendedforusein automotiveapplications.It has built-inzenerdiodesprovidingactive drainvoltageclamping.
