Product Details

Description



Pinout

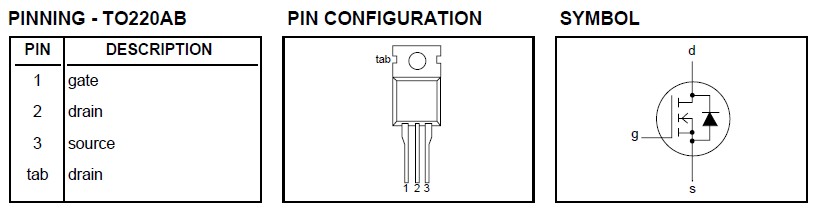

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS
MIN.
MAX.
UNIT

VDS
VDGR
±VGS
±VGSM

ID
ID
IDM
Ptot
Tstg
Tj

Drain-source voltage
Drain-gate voltage
Gate-source voltage
Non-repetitive gate-source voltage

Drain current(DC)
Drain current(DC)
Drain current (pulse peak value)
Total power dissipation
Stroage temperature
Junction Temperature

-
RGS=20 k
-
tp50s

Tmb=25
Tmb=100
Tmb=25
Tmb=25
-
-

-
-
-
-

-
-
-
-
-55
-

200
200
15
20

V
V
V
V

A
A
A
W

-200A
9.2
6.5
36

-200B
8.2
5.8
33

90
175
175




Description

N-channel enhancement mode logic level field-effect power transistor BUK554-200A in a plastic envelope. The device is intended for use in Switched Mode Power Supplies (SMPS), motor control, welding, DC/DC and AC/DC converters, and in automotive and general purpose switching applications.
