Part Number: BUK555-60H



MFG: PHIL



D/C: 05+

Description: N-channel enhancement mode logic level field-effect power transistor in a plastic...


Urgent Purchase

BUK555-60H General Description


N-channel enhancement mode logic level field-effect power transistor in a plastic envelope.

The device is intended for use in Automotive applications, Switched Mode Power Supplies (SMPS), motor control, welding, DC/DC and AC/DC converters, and in general purpose switching applications.

BUK555-60H Maximum Ratings

SYMBOL PARAMETER CONDITIONS
MIN.
MAX.
UNIT

VDS
VDGR
±VGS
±VGSM

ID
ID
IDM
Ptot
Tstg
Tj

Drain-source voltage
Drain-gate voltage
Gate-source voltage
Non-repetitive gate-source
voltage
Drain current(DC)
Drain current(DC)
Drain current (pulse peak value)
Total power dissipation
Stroage temperature
Junction Temperature

-
RGS=20 k
-
tp50s

Tsp=25
Tsp=100
Tsp=25
Tsp=25
-
-

-
-
-
-

-
-
-
-
-55
-

60
60
15
20

41
29
164
125
175
175

V
V
V
V

A
A
A
W

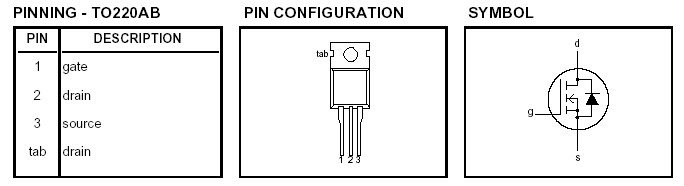

BUK555-60H Connection Diagram

BUK555-60H Connection Diagram

BUK555-60H datasheet

BUK555-60H
PDF/DataSheet Download

  • Datasheet: BUK555-60H
  • File Size: 70862 KB
  • Manufacturer: PHILIPS [Philips Semiconductors]
  • Click here to Download
