Part Number: BUK563-80B
Description: N-channel enhancement mode logic evel field-effect power transistor in a plastic envelope suitable forsurface mount app...
- Table of contents:
BUK563-80B
-
Suppliers
DataSheet
General Description
BUK563-80B General Description
N-channel enhancement mode logic evel field-effect power transistor in a plastic envelope suitable forsurface mount applications. The device is intended for use in automotive and general purpose switching applications.
BUK563-80B Maximum Ratings
| SYMBOL | PARAMETER | CONDITIONS | MIN. | MAX. | UNIT |
| VDS | Drain-source voltage | - | - | 80 | V |
| VDGR | Drain-gate voltage | RGS=20k | - | 80 | V |
| ±VGS | Gate-source voltage | - | - | 15 | V |
| ID | Collector current (DC) | Tmb=25 | - | 16 | A |
| ID | Drain current (DC) | Tmb=100 | - | 11 | A |
| IDM | Drain current (pulse peak value) | Tmb=25 | - | 64 | A |
| Ptot | Total power dissipation | Tmb=25 | - | 75 | W |
| Tstg | Storage temperature | - | -55 | 175 | |
| Tj | Junction temperature | - | - | 175 |

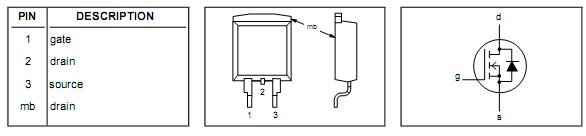

BUK563-80B Connection Diagram
BUK563-80B
PDF/DataSheet Download
- Datasheet: BUK563-80B
- File Size: 60387 KB
- Manufacturer: PHILIPS [Philips Semiconductors]
- Click here to Download
