Part Number: BUK564-60H



MFG: PHIL



D/C: 05+

Description: N-channel enhancement mode logic evel field-effect power transistor in a plastic envelope suitable forsurface mount...


Urgent Purchase

BUK564-60H General Description


N-channel enhancement mode logic evel field-effect power transistor in a plastic envelope suitable forsurface mount applications. The device is intended for use in automotive and general purpose switching applications.

BUK564-60H Maximum Ratings

 SYMBOL  PARAMETER  CONDITIONS  MIN.  MAX.  UNIT
VDS  Drain-source voltage  -  -  60  V
 VDGR  Drain-gate voltage  RGS=20k  -  60  V
± VGS  Gate-source voltage  -  -  15  V
± VGSM Non-repetitive gate-source voltage  tp50s  -  20  V
 ID Drain vurrent (DC)  Tmb=25  -  39  A
 ID Drain vurrent (DC)  Tmb=100  -  28  A
 IDM  Drain vurrent (pulse peak value)  Tmb=25  -  156  A
 Ptot  Total power temperature  Tmb=25  -  125  W
 Tstg  Storage temperature  -  -55  175
 Tj  Junction temperature  -  -  175

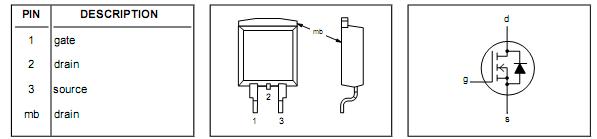

BUK564-60H Connection Diagram
