Features:

* Low forward volt drop
* Fast switching
* Soft recovery characteristic
* High thermal cycling performance
* Low thermal resistance


Pinout

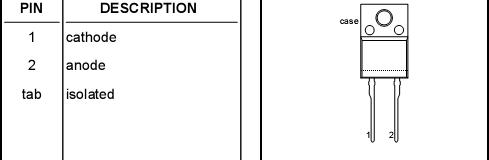

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRSM Peak non-repetitive peak
reverse voltage		 1500 V
VRRM Peak repetitive reverse
voltage		 1500 V
VRWM Crest working reverse voltage 1300 V
I F(peak) Peak working forward curren f = 48 kHz
f = 62 kHz		 12    -
-      10		 A
I FRM Peak repetitive forward
current		 t = 100 s 100 A
IF(RMS) RMS forward current 30 A
IFSM Peak non-repetitive forward
current		 t = 10 ms
t = 8.3 ms
sinusoidal; Tj = 150 ?C prior to
surge; with reapplied VRWM(max		 100
110

 A
Tstg storage temperature -40 +150
Tj operating junction temperature +150



Description

Glass-passivated double diffused rectifier diode featuring fast forward recovery and low forward recovery voltage. BY459-1500S is intended for use in HDTV receivers and multi-sync monitor horizontal deflection circuits.

The BY459 series is supplied in the conventional leaded SOD59 (TO220AC) package.
