Product Details

Description



Pinout

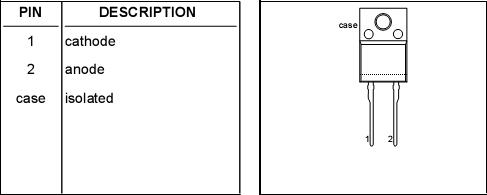

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRSM non-repetitive peak
reverse voltage		 1500 V
VRRM repetitive peak reverse voltage t = 6 s; f = 82kHz 1500 V
VRWM Crest working reverse voltage 1300 V
I FWM working peak forward current1 f = 82kHz; Ths 127

10

 A
I FRM repetitive peak forward current t = 100 s 100 A
IFSM non-repetitive peak forward current t = 10 ms
t = 8.3 ms
sinusoidal; Tj = 150  prior to
surge; with reapplied VRWM(max)		 100
110

 A
Tstg storage temperature -40 +150
Tj operating junction temperature +150



Description

Glass-passivated double diffused rectifier diode in a full pack plastic envelope, featuring fast forward recovery and low forward recovery voltage. BY459F-1500 is intended for use in multi-sync monitor horizontal deflection circuits.
