BYC8-600

Maximum Power Dissipation :
Product : Switching Diodes
Peak Reverse Voltage : 600 V
Configuration : Single
Operating Temperature Range : + 150 C
Max Surge Current : 60 A
Packaging : Rail
Forward Continuous Current : 8 A
Recovery Time : 52 ns
Forward Voltage Drop : 2.9 V
Maximum Reverse Leakage Current : 150 uA
Package / Case : SOD-59


Features:

* Extremely fast switching
* Low reverse recovery current
* Low thermal resistance
* Reduces switching losses in associated MOSFET


Application

* Active power factor correction
* Half-bridge lighting ballasts
* Half-bridge/ full-bridge  switched mode power supplies.

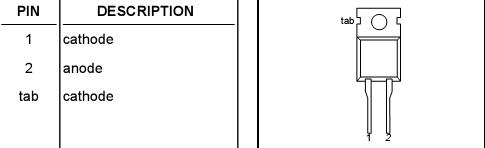

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
VRRM	repetitive peak reverse voltage			600	V
VRRM	repetitive peak reverse voltage			600	V
VR	continuous reverse voltage	Tmb110		500	V
I F(AV)	average forward current	= 0.5; with reapplied V RRM(max) ;  Tmb 82		8	A
IFRM	Repetitive peak forward current	= 0.5; with reapplied V RRM(max) ;  Tmb 82		16	A
IFSM	non-repetitive peak forward current	t = 10 ms t = 8.3 ms sinusoidal; Tj = 150 prior to surge with reapplied V RWM(max)		55 60	A

Tstg	storage temperature		-40	150
Tj	operating junction temperature			150

Description

The BYC8-600 is supplied in the SOD59 (TO220AC) conventional leaded package.
