Part Number: BYD17K



MFG: PHILIP



D/C: 06+

Description: Cavity free cylindrical glass SOD87 package through Implotec(TM)(1) technology. The SOD87 package is

Urgent Purchase

BYD17K General Description


Cavity free cylindrical glass SOD87 package through Implotec(TM)(1) technology. The SOD87 package is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched.

BYD17K Maximum Ratings

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM repetitive peak reverse voltage 800 V
VRWM crest working reverse voltage 800 V
VR crest working reverse voltage 800 V
I F(AV) average forward current Ttp = 105 °C;
averaged over any 20 ms period;
see Figs 2 and 4		 1.5 A
I F(AV) average forward current Tamb =65 °C; PCB mounting (see
Fig.9);
averaged over any 20 ms period;
see Figs 3 and 4		 0.6 A
IFSM non-repetitive peak forward current t = 10 ms half sine wave; Tj =Tj max
prior to surge; VR =VRRMmax		 20 A
ERSM non-repetitive peak reverse
avalanche energy		 L = 120 mH; Tj =Tj max prior to surge;
inductive load switched off		 7 mJ
Tstg storage temperature -65 +175
Tj operating junction temperature see Figs 17 and 18 -65 175

BYD17K Features

* Glass passivated
* High maximum operating temperature
* Low leakage current
* Excellent stability
* Guaranteed avalanche energy absorption capability
* Shipped in 8 mm embossed tape
* Smallest surface mount rectifier outline.

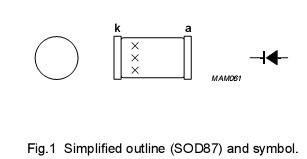

BYD17K Connection Diagram

BYD17K Connection Diagram
