BYQ28X-200

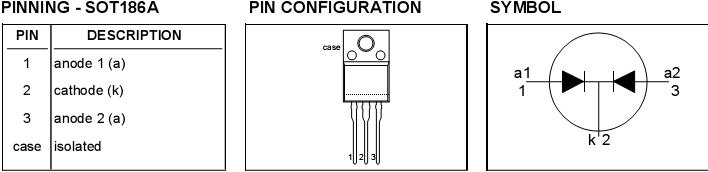

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
VRRM	Peak repetitive reverse Voltage			200	V
VRWM	Working peak reverse voltage			200	V
VR	continuous reverse voltage			200	V
I O(AV)	Output current (both diodes conducting)1	square wave; = 0.5; Tmb 104 sinusoidal a = 1.57; Ths 95		10 9	A
I O(RMS)	RMS forward current			14	A
I FRM	Repetitive peak forward current per diode	t = 25 s;  = 0.5; Tmb 104		10	A
IFSM	non-repetitive peak forward current	t = 10 ms t = 8.3 ms sinusoidal; with reapplied VRRMmax)		50 55	A
I2t	I2t for fusing	t = 10 ms		12.5	A2S

Tstg	storage temperature		-40	+150
Tj	operating junction temperature			+150

Description

Glass passivated dual epitaxial rectifier BYQ28X-200 diodes in a full pack plastic envelope, featuring low forward voltage drop, ultra-fast recovery times and soft recovery characteristic. They are intended for use in switched mode power supplies and high frequency circuits in general where low conduction and switching losses are essential.
