BYV32-200

Product : Ultra Fast Recovery Rectifiers
Reverse Current IR : 50 uA
Reverse Voltage : 200 V
Mounting Style : Through Hole
Packaging : Tube
Max Surge Current : 100 A
Forward Voltage Drop : 1.15 V
Configuration : Dual Common Cathode
Package / Case : TO-220AB
Forward Continuous Current : 16 A
Recovery Time : 35 ns

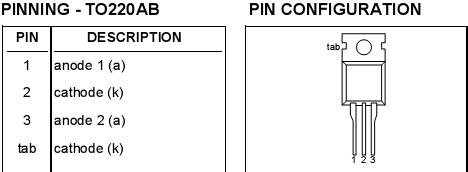

Pinout






Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
VRRM	Peak repetitive reverse Voltage			200	V
VRWM	Working peak reverse voltage			200	V
VR	continuous reverse voltage			200	V
I O(AV)	Average rectified output current (both diodes conducting)	square wave; = 0.5; Tmb 78 sinusoidal; a = 1.57;Ths 78		20 18	A
I O(RMS)	RMS output current (both diodes conducting)			28	A
I FRM	repetitive peak forward current	t = 25 s; = 0.5;Ths87		20	A
IFSM	non-repetitive peak forward current	t = 10 ms t = 8.3 ms sinusoidal; with reapplied VRRMmax)		125 137	A

I2t	I2t for fusing	t = 10 ms		78	A2s
Tstg	storage temperature		-40	+150
Tj	operating junction temperature			+150

Description

Glass passivated high efficiency dual rectifier BYV32-200 diodes in a plastic envelope,featuring low forward voltage drop,ultra-fast recovery times and soft recovery characteristic. BYV32-200 are intended for use in switched mode power supplies and high frequency circuits in general where low conduction and switching losses are essential.
