Purchase BYV34-400, In-stock BYV34-400 From SeekIC.
D/C:07+
Part Number: BYV34-400
D/C: 07+
Description: Dual, common cathode, ultra-fast,epitaxial rectifier diodes intended for use as output rectifiers in high frequency swi...
- Table of contents:
BYV34-400
-
Suppliers
DataSheet
General Description
BYV34-400 General Description
Dual, common cathode, ultra-fast,epitaxial rectifier diodes intended for use as output rectifiers in high frequency switched mode power supplies.
The BYV34 series is supplied in the conventional leaded SOT78 (TO220AB) package.
BYV34-400 Maximum Ratings
| SYMBOL | PARAMETER | CONDITIONS | MIN. | MAX. | UNIT |
| VRRM | Peak repetitive reverse Voltage |
400 | V | ||
| VRWM | Working peak reverse voltage |
400 | V | ||
| VR | continuous reverse voltage | 400 | V | ||
| I O(AV) | Average rectified output current (both diodes conducting) |
square wave; = 0.5; Tmb 115 |
20 |
A | |
| I FRM | repetitive peak forward current | t = 25 s; = 0.5; Tmb 115 |
20 | A | |
| IFSM | non-repetitive peak forward current | t = 10 ms t = 8.3 ms sinusoidal; with reapplied VRRMmax) |
120 132 |
A |
| Tstg | storage temperature | -40 | +150 | ||
| Tj | operating junction temperature | +150 |
BYV34-400 Features
* Low forward volt drop
* Fast switching
* Soft recovery characteristic
* High thermal cycling performance
* Low thermal resistance
* Fast switching
* Soft recovery characteristic
* High thermal cycling performance
* Low thermal resistance

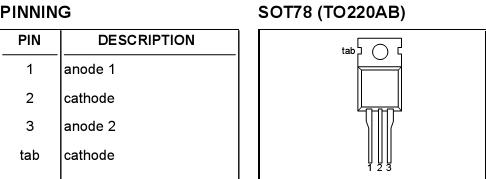

BYV34-400 Connection Diagram
BYV34-400
PDF/DataSheet Download
- Datasheet: BYV34-400
- File Size: 47418 KB
- Manufacturer: PHILIPS [Philips Semiconductors]
- Click here to Download
