BYV42E-150

Product : Ultra Fast Recovery Rectifiers
Mounting Style : Through Hole
Forward Continuous Current : 30 A
Reverse Current IR : 100 ua
Max Surge Current : 160 A
Forward Voltage Drop : 1.2 V
Configuration : Dual Common Cathode
Reverse Voltage : 150 V
Package / Case : TO-220AB
Recovery Time : 28 ns
Packaging : Rail


Features:

* Low forward volt drop
* Fast switching
* Soft recovery characteristic
* Reverse surge capability
* High thermal cycling performance
* Isolated mounting tab

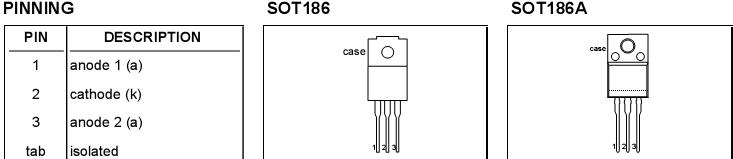

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
VRRM	Peak repetitive reverse Voltage			150	V
VRWM	Working peak reverse voltage			150	V
VR	continuous reverse voltage			150	V
I O(AV)	Average rectified output current (both diodes conducting)	square wave; = 0.5; Tmb 104		20	A
I FRM	repetitive peak forward current	square wave;= 0.5; Tmb 104		30	A
IFSM	non-repetitive peak forward current	t = 10 ms t = 8.3 ms sinusoidal; with reapplied VRRMmax)		150 160	A

I RRM	Peak repetitive reverse surge current	tp = 2 s; = 0.001		0.2	A
I RSM	Peak non-repetitive reverse surge current	tp = 100 s		0.2	A
Tstg	storage temperature		-40	+150
Tj	operating junction temperature			+150

Description

Dual, ultra-fast, epitaxial rectifier BYV42E-150 diodes intended for use as output rectifiers in high frequency switched mode power supplies.
The BYV42F series is supplied in the SOT186 package.
The BYV42EX series is supplied in the SOT186A package.
