Part Number: BYV72EW-200







D/C: 07+

Description: Dual, ultra-fast, epitaxial rectifier diodes intended for use as output rectifiers in high frequency switched mode powe...


Urgent Purchase

BYV72EW-200 General Description


Dual, ultra-fast, epitaxial rectifier diodes intended for use as output rectifiers in high frequency switched mode power supplies.

The BYV72EW series is supplied in the conventional leaded SOT429 (TO247) package.

BYV72EW-200 Maximum Ratings

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM Peak repetitive reverse
Voltage		 200 V
VRWM Working peak reverse
voltage		 200  V
VR continuous reverse voltage Tmb 144 200  V
I O(AV) Average rectified output
current (both diodes
conducting)		 square wave; = 0.5; Tmb 104

30

 A
I FRM repetitive peak forward current t = 25 s; = 0.5;
Tmb 104 		30 A
IFSM non-repetitive peak forward current t = 10 ms
t = 8.3 ms
sinusoidal; with reapplied VRRMmax)
 150
160


 A
I RRM Peak repetitive reverse
surge current		 tp = 2 s; = 0.001 0.2 A
I RSM Peak non-repetitive reverse
surge current		 tp = 100 s 0.2 A
Tstg storage temperature -40 +150
Tj operating junction temperature +150

BYV72EW-200 Features

* Low forward volt drop
* Fast switching
* Soft recovery characteristic
* Reverse surge capability
* High thermal cycling performance
* Low thermal resistance

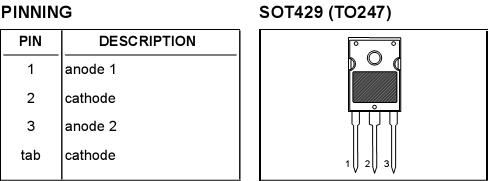

BYV72EW-200 Connection Diagram

BYV72EW-200 Connection Diagram

BYV72EW-200 datasheet

BYV72EW-200
PDF/DataSheet Download

  • Datasheet: BYV72EW-200
  • File Size: 51653 KB
  • Manufacturer: PHILIPS [Philips Semiconductors]
  • Click here to Download
