Part Number: BYV74F



MFG: PH/ST

Package Cooled: TO-3P

D/C: 06+

Description: Dual, common cathode, ultra-fast, epitaxial rectifier diodes intended for use as output rectifiers in high frequency sw...


Urgent Purchase

BYV74F General Description


Dual, common cathode, ultra-fast, epitaxial rectifier diodes intended for use as output rectifiers in high frequency switched mode power supplies.

The BYV74F series is supplied in the conventional leaded SOT199 package.

BYV74F Maximum Ratings

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM Peak repetitive reverse voltage -300 -400 -500 V
VRWM Crest working reverse voltage 300 400 500 V
VR Continuous reverse voltage Tmb 117 300 400 500 V
I o(AV) average forward current square wave;  = 0.5;Ths 54 20 A
IFRM repetitive peak forward current t = 25 s; = 0.5;Ths   54 30 A
IFSM non-repetitive peak forward current t = 10 ms
t = 8.3 ms
sinusoidal; with reapplied
VRRM(max)		 150
160
 A
ERSM non-repetitive peak reverse
avalanche energy
10 mJ
Tstg storage temperature -40 +150
Tj operating junction temperature 150

BYV74F Features

* Low forward volt drop
* Fast switching
* Soft recovery characteristic
* High thermal cycling performance
* Isolated mounting tab

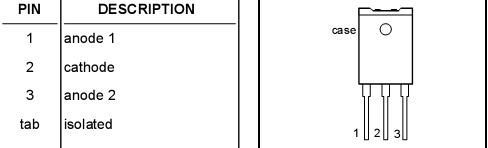

BYV74F Connection Diagram

BYV74F Connection Diagram

BYV74F datasheet

BYV74F
PDF/DataSheet Download

Find BYV74F Suppliers
