Part Number: BYV74



MFG: PH/ST

Package Cooled: TO-3P

D/C: 06+

Description: Glass passivated, high efficiency rectifier diodes in a plastic envelope featuring low forward voltage drop, ultra fast...


Urgent Purchase

BYV74 General Description


Glass passivated, high efficiency rectifier diodes in a plastic envelope featuring low forward voltage drop, ultra fast reverse recoverytimes and soft recovery characteristic.They are  intended for use in switched mode power supplies and high frequency circuits in general, where both low conduction losses and low switching losses are essential.

BYV74 Maximum Ratings

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM Repetitive peak reverse voltage -300 -400 -500
300 400 500		 V
VRWM Crest working reverse voltage 300 400 500 V
VR Continuous reverse voltage 300 400 500 V
I OAV) Average output current1 (both diodes conducting) square wave; = 0.5;
Ths 83
sinusoidal; a = 1.57;
Ths 90

30

27

 A
I O(RMS) RMRMS output current (both
diodes conducting)		 43 A
IFRM Repetitive peak forward current
per diode		 t = 25s;= 0.5;
 Tmb 94		 30 A
IFSM Non-repetitive peak forward current per diode. t = 10 ms
t = 8.3 ms
sinusoidal; Tj= 150 prior to surge;
with reapplied VRWM(max)		 150
160



 A
I2t I2t for fusing t = 10 ms 112 A2s
Tstg storage temperature -40 +150
Tj operating junction temperature +150

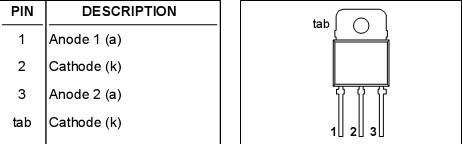

BYV74 Connection Diagram

BYV74 Connection Diagram

BYV74 datasheet

BYV74
PDF/DataSheet Download
