MFG:SOT78/TO-220AB Package Cooled:7850 D/C:PH
MFG: SOT78/TO-220AB
Package Cooled: 7850
D/C: PH
Description: Ultra-fast, epitaxial rectifier diodes intendedforuseasoutputrectifiers in high frequency switched mode power sup...
| SYMBOL | PARAMETER | CONDITIONS | MIN. | MAX. | UNIT |
| VRRM | Peak repetitive reverse Voltage |
200 | V | ||
| VRWM | Working peak reverse voltage |
200 | V | ||
| VR | continuous reverse voltage | Tmb 145 | 200 | V | |
| I F(AV) | Average rectified forward current 1 |
square wave; = 0.5; Tmb 120 |
14 |
A | |
| I FRM | Repetitive peak forward current per diode | t = 25 s; = 0.5; Tmb 120 |
28 | A | |
| IFSM | non-repetitive peak forward current | t = 10 ms t = 8.3 ms sinusoidal; with reapplied VRRMmax) |
150 160 |
A |
| I RRM | Peak repetitive reverse surge current |
tp = 2 s; = 0.001 | 0.2 | A | |
| I RSM | Peak non-repetitive reverse surge current |
tp = 100 s | 0.2 | A | |
| Tstg | storage temperature | -40 | +150 | ||
| Tj | operating junction temperature | +150 |
BYV79E-200
PDF/DataSheet Download

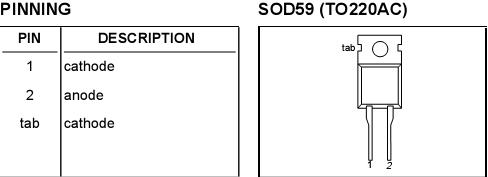

Ultra-fast, epitaxial rectifier BYV79E-150 diodes intendedforuseasoutputrectifiers in high frequency switched mode power supplies.The BYV79E series is supplied in the conventional leaded SOD59 (TO220AC) package.
