Purchase BYV98, In-stock BYV98 From SeekIC.
Part Number: BYV98
Description: Rugged glass SOD57 package, using a high temperature alloyed construction. This package is hermetica...
- Table of contents:
BYV98
-
Suppliers
DataSheet
General Description
BYV98 General Description
Rugged glass SOD57 package, using a high temperature alloyed construction. This package is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched.
BYV98 Maximum Ratings
| SYMBOL | PARAMETER | CONDITIONS | MIN. | MAX. | UNIT |
| VRRM | repetitive peak reverse voltage | 2100 | V | ||
| VR | continuous reverse voltage | 2000 | V | ||
| I F(AV) | average forward current | Ttp =55 °C; lead length = 10 mm see Fig. 2; averaged over any 20 ms period;see also Fig. 6 Tamb =60 °C; PCB mounting (see Fig.11); see Fig. 3; averaged over any 20 ms period; see also Fig. 6 |
1.00 |
A | |
| IFRM | repetitive peak forward current | Ttp =55 °C; see Fig. 4 Tamb =60 °C; see Fig. 5 |
9 4.5 |
A |
| IFSM | non-repetitive peak forward current | t = 10 ms half sine wave; Tj =Tj max prior to surge; VR =VRRMmax |
15 | A | |
| Tstg | storage temperature | -65 | +175 | ||
| Tj | operating junction temperature | -65 | +175 |
BYV98 Features
* Glass passivated
* High maximum operating temperature
* Low leakage current
* Excellent stability
* Available in ammo-pack.
* High maximum operating temperature
* Low leakage current
* Excellent stability
* Available in ammo-pack.

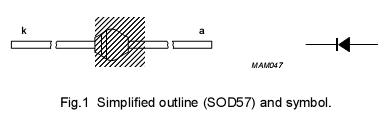

BYV98 Connection Diagram
BYV98
PDF/DataSheet Download
- Datasheet: BYV98
- File Size: 57537 KB
- Manufacturer: VISAY [Vishay Siliconix]
- Click here to Download
