BYW29E General Description


Ultra-fast, epitaxial rectifier diodes intended for use as output rectifiers in high frequency switched mode power supplies.

The BYW29E series is supplied in the conventional leaded SOD59 (TO220AC) package.

BYW29E Maximum Ratings

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM Peak repetitive reverse
Voltage		 -150  -200
150    200		 V
VRWM Working peak reverse
voltage		 150    200 V
VR continuous reverse voltage 150    200 V
I F(AV) Average rectified forward
current		 square wave; = 0.5; Tmb 128

8

 A
I FRM repetitive peak forward current square wave;= 0.5; Tmb 128 16 A
IFSM non-repetitive peak forward current t = 10 ms
t = 8.3 ms
sinusoidal; with reapplied VRRMmax)
 80
88


 A
I RRM Peak repetitive reverse
surge current		 tp = 2 s; = 0.001 0.2 A
I RSM Peak non-repetitive reverse
surge current		 tp = 100 s 0.2 A
Tstg storage temperature -40 +150
Tj operating junction temperature +150

BYW29E Features

* Low forward volt drop
* Fast switching
* Soft recovery characteristic
* Reverse surge capability
* High thermal cycling performance
* Low thermal resistance

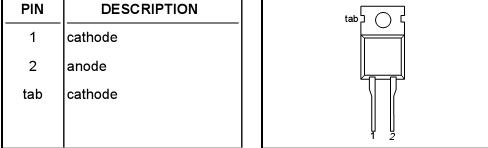

BYW29E Connection Diagram
