Features:

· Total power dissipation: max. 425 mW
· Approx. 5% VZ tolerance
· Ultra small flat plastic SMD package
· Working voltage range nom. 2.4 to 15 V (E24 range).


Application

· General regulation functions
· ESD and surge protection.


Pinout

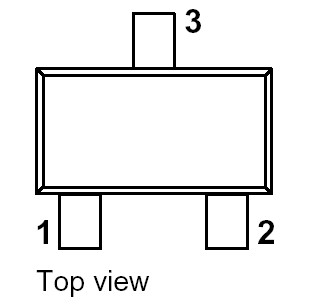

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
IF continuous forward current   - 200 mA
IZSM non-repetitive peak reverse current tp = 100 ms; square wave;
Tamb = 25 °C; prior to surge		 see Table 1
Ptot total power dissipation Tamb = 25 °C; 2 diodes loaded; note 1 -
 425 mW
Tamb = 25 °C; 1 diode loaded; note 1 265 mW
PZSM non-repetitive peak reverse dissipation tp = 100 ms; square wave;
TTamb = 25 °C; prior to surge		 -
 40 W
Tstg storage temperature   -65 +150 °C
Tj junction temperature   - 150 °C

Note
1. Device mounted on an FR4 printed-circuit board.


Description

Low-power voltage regulator BZB984 diodes in a SOT663 ultra small plastic SMD package.
