BZT52C3V6-TP

Zener Diodes 500mW 3.6V

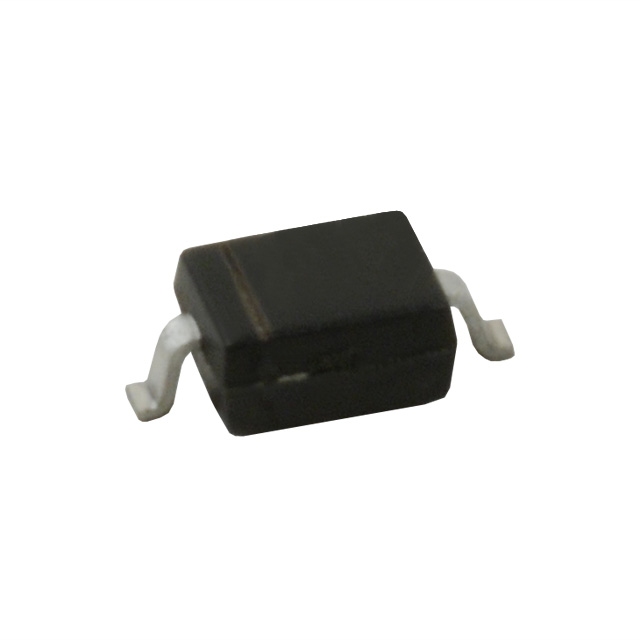

product image

BZT52C3V6-TP Picture
See larger image
SeekIC No. : 00274879 Detail

BZT52C3V6-TP: Zener Diodes 500mW 3.6V

BZT52C3V6-TP Data Sheet

floor Price/Ceiling Price

US $ .08~.11 / Piece | Get Latest Price
Part Number:
BZT52C3V6-TP
Mfg:
Micro Commercial Components (MCC)
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • Unit Price
  • $.11
  • $.1
  • $.09
  • $.08
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Zener Voltage : 3.6 V Voltage Tolerance : 6 %
Voltage Temperature Coefficient : - 1.75 mV / C Power Dissipation : 500 mW
Maximum Reverse Leakage Current : 5 uA Maximum Zener Impedance : 90 Ohms
Maximum Operating Temperature : + 175 C Mounting Style : SMD/SMT
Package / Case : SOD-123 Packaging : Reel

Description

Zener Current :
Mounting Style : SMD/SMT
Packaging : Reel
Maximum Reverse Leakage Current : 5 uA
Power Dissipation : 500 mW
Package / Case : SOD-123
Maximum Operating Temperature : + 175 C
Voltage Tolerance : 6 %
Zener Voltage : 3.6 V
Maximum Zener Impedance : 90 Ohms
Voltage Temperature Coefficient : - 1.75 mV / C


Parameters:

Technical/Catalog InformationBZT52C3V6-TP
VendorMicro Commercial Co
CategoryDiscrete Semiconductor Products
Voltage - Zener (Nom) (Vz)3.6V
Power - Max500mW
Impedance (Max) (Zzt)90 Ohm
Voltage - Forward (Vf) (Max) @ If900mV @ 10mA
Current - Reverse Leakage @ Vr5A @ 1V
Tolerance-
Mounting TypeSurface Mount
Package / CaseSOD-123
PackagingTape & Reel (TR)
Operating Temperature-65°C ~ 175°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names BZT52C3V6 TP
BZT52C3V6TP
