C505CA
-
Suppliers
DataSheet
General Description
C505CA Maximum Ratings
| Parameter |
Symbol |
Limit Values |
Unit |
Notes | |
|
min. |
max. | ||||
| Storage temperature |
TST |
-65 |
150 |
° C |
- |
| Voltage on VDD pins with respect to ground (VSS) |
VDD |
-0.5 |
6.5 |
V |
- |
| Voltage on any pin with respect to ground (VSS) |
VIN |
0.5 |
VDD + 0.5 |
V |
- |
| Input current on any pin during overload condition |
10 |
10 |
mA |
- | |
| Absolute sum of all input currents during overload condition |
| 100 mA | |
mA |
- | ||
| Power dissipation |
PDISS |
1 |
W |
- | |
C505CA Features
• Fully compatible to standard 8051 microcontroller
• Superset of the 8051 architecture with 8 datapointers
• Up to 20 MHz operating frequency
375 ns instruction cycle time @16 MHz
300 ns instruction cycle time @20 MHz (50 % duty cycle)
• On-chip program memory (with optional memory protection)
C505(C)(A)-2R : 16K byte on-chip ROM
C505A-4R/C505CA-4R: 32K byte on-chip ROM
C505A-4E/C505CA-4E: 32K byte on-chip OTP
alternatively up to 64k byte external program memory
• 256 byte on-chip RAM
• On-chip XRAM
C505/C505C : 256 byte
C505A/C505CA : 1K byte
• 32 + 2 digital I/O lines
Four 8-bit digital I/O ports
One 2-bit digital I/O port (port 4)
Port 1 with mixed analog/digital I/O capability
• Three 16-bit timers/counters
Timer 0 / 1 (C501 compatible)
Timer 2 with 4 channels for 16-bit capture/compare operation
• Full duplex serial interface with programmable baudrate generator (USART)
• Full CAN Module, version 2.0 B compliant (C505C and C505CA only)
256 register/data bytes located in external data memory area
1 MBaud CAN baudrate when operating frequency is equal to or above 8 MHz
internal CAN clock prescaler when input frequency is over 10 MHz
• On-chip A/D Converter
up to 8 analog inputs
C505/C505C : 8-bit resolution
C505A/C505CA: 10-bit resolution
• Twelve interrupt sources with four priority levels
• On-chip emulation support logic (Enhanced Hooks Technology TM)
• Programmable 15-bit watchdog timer
• Oscillator watchdog
• Fast power on reset
• Power Saving Modes
Slow-down mode
Idle mode (can be combined with slow-down mode)
Software power-down mode with wake up capability through P3.2/INT0 or P4.1/RXDC pin
• P-MQFP-44 package
• Pin configuration is compatible to C501, C504, C511/C513-family
• Temperature ranges:
SAB-C505 versions TA = 0 to 70 °C
SAF-C505 versions TA = -40 to 85°C
SAH-C505 versions TA = -40 to 110°C
SAK-C505 versions TA = -40 to 125°C
• Superset of the 8051 architecture with 8 datapointers
• Up to 20 MHz operating frequency
375 ns instruction cycle time @16 MHz
300 ns instruction cycle time @20 MHz (50 % duty cycle)
• On-chip program memory (with optional memory protection)
C505(C)(A)-2R : 16K byte on-chip ROM
C505A-4R/C505CA-4R: 32K byte on-chip ROM
C505A-4E/C505CA-4E: 32K byte on-chip OTP
alternatively up to 64k byte external program memory
• 256 byte on-chip RAM
• On-chip XRAM
C505/C505C : 256 byte
C505A/C505CA : 1K byte
• 32 + 2 digital I/O lines
Four 8-bit digital I/O ports
One 2-bit digital I/O port (port 4)
Port 1 with mixed analog/digital I/O capability
• Three 16-bit timers/counters
Timer 0 / 1 (C501 compatible)
Timer 2 with 4 channels for 16-bit capture/compare operation
• Full duplex serial interface with programmable baudrate generator (USART)
• Full CAN Module, version 2.0 B compliant (C505C and C505CA only)
256 register/data bytes located in external data memory area
1 MBaud CAN baudrate when operating frequency is equal to or above 8 MHz
internal CAN clock prescaler when input frequency is over 10 MHz
• On-chip A/D Converter
up to 8 analog inputs
C505/C505C : 8-bit resolution
C505A/C505CA: 10-bit resolution
• Twelve interrupt sources with four priority levels
• On-chip emulation support logic (Enhanced Hooks Technology TM)
• Programmable 15-bit watchdog timer
• Oscillator watchdog
• Fast power on reset
• Power Saving Modes
Slow-down mode
Idle mode (can be combined with slow-down mode)
Software power-down mode with wake up capability through P3.2/INT0 or P4.1/RXDC pin
• P-MQFP-44 package
• Pin configuration is compatible to C501, C504, C511/C513-family
• Temperature ranges:
SAB-C505 versions TA = 0 to 70 °C
SAF-C505 versions TA = -40 to 85°C
SAH-C505 versions TA = -40 to 110°C
SAK-C505 versions TA = -40 to 125°C

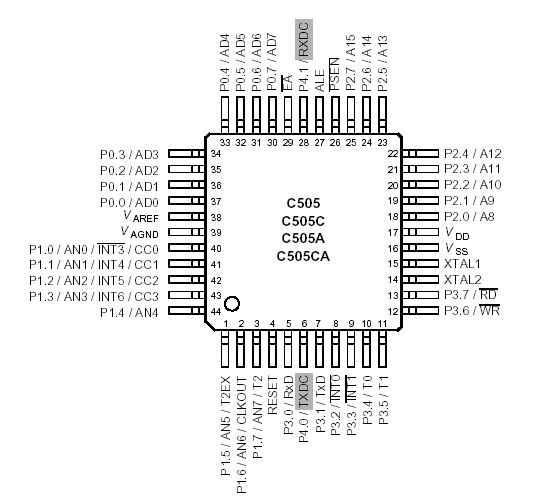

C505CA Connection Diagram
C505CA
PDF/DataSheet Download
- Datasheet: C505CA
- File Size: 1253880 KB
- Manufacturer: INFINEON [Infineon Technologies AG]
- Click here to Download
