C8051F320

8-bit Microcontrollers (MCU) 16KB 10ADC

product image

C8051F320 Picture
See larger image
SeekIC No. : 00376753 Detail

C8051F320: 8-bit Microcontrollers (MCU) 16KB 10ADC

C8051F320 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
C8051F320
Mfg:
Silicon Labs
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Core : 8051 Processor Series : C8051
Data Bus Width : 8 bit Maximum Clock Frequency : 25 MHz
Program Memory Size : 16 KB Data RAM Size : 2.25 KB
On-Chip ADC : Yes Operating Supply Voltage : 2.7 V to 3.6 V
Package / Case : LQFP-32 Mounting Style : SMD/SMT

Description

Operating Temperature Range :
Data Bus Width : 8 bit
On-Chip ADC : Yes
Mounting Style : SMD/SMT
Core : 8051
Program Memory Size : 16 KB
Processor Series : C8051
Maximum Clock Frequency : 25 MHz
Package / Case : LQFP-32
Operating Supply Voltage : 2.7 V to 3.6 V
Data RAM Size : 2.25 KB


Pinout

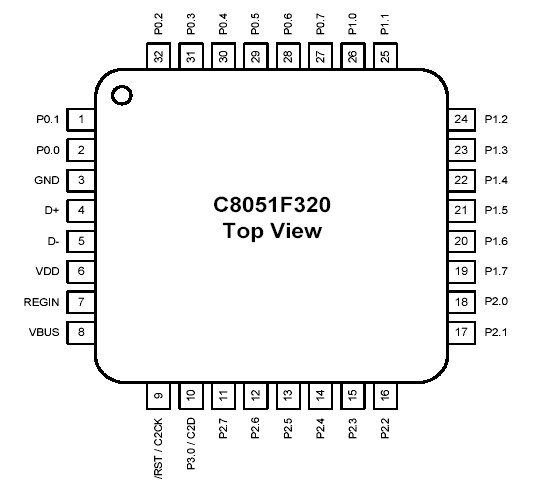

Connection Diagram


Specifications

Parameter
Conditions
Min
Typ
Max
Units
Ambient temperature under bias
55
-
125
°C
Storage Temperature
65
-
150
°C
Voltage on any Port I/O Pin or RST with respect to GND
0.3
-
5.8
V
Voltage on VDD with respect to GND
0.3
-
4.2
V
Maximum Total current through VDD and GND
-
-
500
mA
Maximum output current sunk by RST or any Port pin
-
-
100
mA



Parameters:

Technical/Catalog InformationC8051F320
VendorSilicon Laboratories Inc
CategoryIntegrated Circuits (ICs)
Program Memory Size16KB (16K x 8)
RAM Size2.25K x 8
Number of I /O25
Package / Case32-LQFP
Speed25MHz
Controller SeriesC8051F32x Flash
Oscillator TypeInternal
PackagingTray
Program Memory TypeFLASH
EEPROM Size-
Core Processor8051
Data ConvertersA/D 17x10b
Core Size8-Bit
Operating Temperature-40°C ~ 85°C
ConnectivitySMBus (2-Wire/I²C), SPI, UART/USART, USB
PeripheralsBrown-out Detect/Reset, POR, PWM, Temp Sensor, WDT
Voltage - Supply (Vcc/Vdd)2.7 V ~ 3.6 V
Drawing Number*
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names C8051F320
C8051F320
