CA3102

Features:

• Power Gain 23dB (Typ). . . . . . . . . . . . . . . . . . . . . 200MHz
• Noise Figure 4.6dB (Typ) . . . . . . . . . . . . . . . . . . . 200MHz
• Two Differential Amplifiers on a Common Substrate
• Independently Accessible Inputs and Outputs
• Full Military Temperature Range . . . . . . . -55 to 125




Application

• VHF Amplifiers
• VHF Mixers
• Multifunction Combinations - RF/Mixer/Oscillator; Converter/IF
• IF Amplifiers (Differential and/or Cascode)
• Product Detectors
• Doubly Balanced Modulators and Demodulators
• Balanced Quadrature Detectors
• Cascade Limiters
• Synchronous Detectors
• Balanced Mixers
• Synthesizers
• Balanced (Push-Pull) Cascode Amplifiers
• Sense Amplifiers

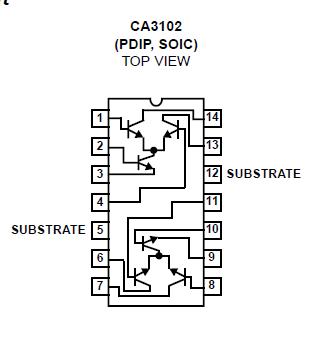

Pinout






Specifications

Collector-to-Emitter Voltage, V_CEO . . . . . . . . . . . . . . . . . . . . . . 15V
Collector-to-Base Voltage, V_CBO. . . . . . . . . . . . . . . . . . . . . . . . 20V
Collector-to-Substrate Voltage, V_CIO (Note 1) . . . . . . . . . . . . . . 20V
Emitter-to-Base Voltage, V_EBO . . . . . . . . . . . . . . . . . . . . . . . . . . 5V
Collector Current, I_C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50mA




Description

The CA3102 consists of two independent differential amplifiers with associated constant current transistors on a common monolithic substrate. The six transistors which comprise the amplifiers are general purpose devices which exhibit low 1/f noise and a value of fT in excess of 1GHz. These features make the CA3102 useful from DC to 500MHz. Bias and load resistors have been omitted to provide maximum application flexibility. The monolithic construction of the CA3102 provides close electrical and thermal matching of the amplifiers. This feature makes this device particularly useful in dual channel applications where matched performance of the two channels is required. The CA3102 has a separate substrate connection for greater design flexibility.
