Description: The CA3127 consists of five general purpose silicon NPN transistors on a common monolithic substrate. ...
- Table of contents:
CA3127
-
Suppliers
DataSheet
General Description
CA3127 General Description
The CA3127 consists of five general purpose silicon NPN transistors on a common monolithic substrate. Each of the completely isolated transistors exhibits low 1/f noise and a value of fT in excess of 1GHz, making the CA3127 useful from DC to 500MHz. Access is provided to each of the terminals for the individual transistors and a separate substrate connection has been provided for maximum application flexibility. The monolithic construction of the CA3127 provides close electrical and thermal matching of the five transistors.
CA3127 Maximum Ratings
The following ratings apply for each transistor in the device
Collector-to-Emitter Voltage, VCEO . . . . . . . . . . . . . . . . . 15V
Collector-to-Base Voltage, VCBO. . . . . . . . . . . . . . . . . . 20V
Collector-to-Substrate Voltage, VCIO (Note 1). . . . . . . . 20V
Collector Current, IC . . . . . . . . . . . . . . . . . . . . . . . . . ..20mA
Collector-to-Emitter Voltage, VCEO . . . . . . . . . . . . . . . . . 15V
Collector-to-Base Voltage, VCBO. . . . . . . . . . . . . . . . . . 20V
Collector-to-Substrate Voltage, VCIO (Note 1). . . . . . . . 20V
Collector Current, IC . . . . . . . . . . . . . . . . . . . . . . . . . ..20mA
CA3127 Features
• Gain Bandwidth Product (fT). . . . . . . . . . . . . . . . >1GHz
• Power Gain . . . . . . . . . . . . . . . . . 30dB (Typ) at 100MHz
• Noise Figure . . . . . . . . . . . . . . . . 3.5dB (Typ) at 100MHz
• Five Independent Transistors on a Common Substrate
• Power Gain . . . . . . . . . . . . . . . . . 30dB (Typ) at 100MHz
• Noise Figure . . . . . . . . . . . . . . . . 3.5dB (Typ) at 100MHz
• Five Independent Transistors on a Common Substrate
CA3127 Typical Application
• VHF Amplifiers
• Multifunction Combinations - RF/Mixer/Oscillator
• Sense Amplifiers
• Synchronous Detectors
• VHF Mixers
• IF Converter
• IF Amplifiers
• Synthesizers
• Cascade Amplifiers
• Multifunction Combinations - RF/Mixer/Oscillator
• Sense Amplifiers
• Synchronous Detectors
• VHF Mixers
• IF Converter
• IF Amplifiers
• Synthesizers
• Cascade Amplifiers

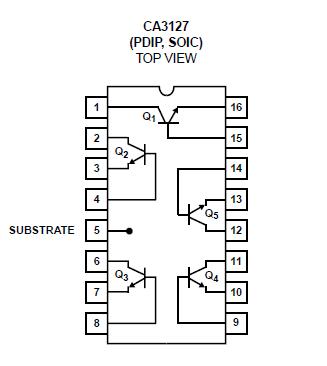

CA3127 Connection Diagram
CA3127
PDF/DataSheet Download
- Datasheet: CA3127
- File Size: 61827 KB
- Manufacturer: INTERSIL [Intersil Corporation]
- Click here to Download
