CA3154

Features:

• Horizontal Oscillator with AFC
• Sync Separator with Noise Immunity
• Strobed AGC System
• lF AGC Output
• Delayed Outputs for Forward or Reverse AGC Tuners
• Internal Noise Threshold
• High-Impedance Video Input
• Choice of Dual External Time Constants for Sync Separator Noise Immunity
• RF AGC Delay Externally Controlled
• Output Short-Circuit Protection

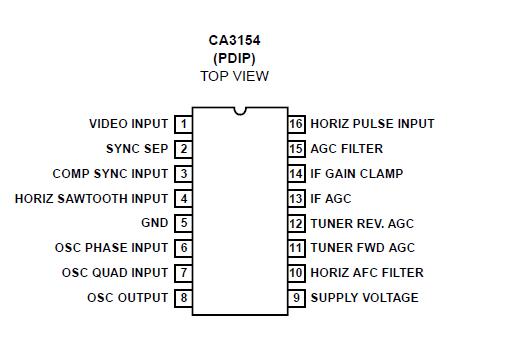

Pinout




Specifications

DC Supply Voltage (V+ to V-) . . . . . . . . . . . . . . . . . . . . . . . . . . . 15V


Description

The CA3154 is a monolithic integrated circuit TV signal processor designed for use in color or monochrome receivers. Circuit functions include a horizontal oscillator with AFC, a sync separator, and a keyed AGC system. The AGC system provides output signals for IF (reverse) and tuner (forward and/or reverse). The wide frequency-range horizontal oscillator has high stability at 503.5kHz. When the
CA3154 is used in conjunction with horizontal/vertical countdown circuits, the need for horizontal and vertical hold controls is eliminated.
