General Description
CA3160 Maximum Ratings
Supply Voltage (Between V+ and V- Terminals) . . . . . . . . . . . +16V
Differential Mode Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . .8V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . (V+ +8V) to (V- -0.5V)
Input Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1mA
Output Short Circuit Duration (Note 2). . . . . . . . . . . . . . . . Indefinite
Differential Mode Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . .8V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . (V+ +8V) to (V- -0.5V)
Input Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1mA
Output Short Circuit Duration (Note 2). . . . . . . . . . . . . . . . Indefinite
CA3160 Features
• MOSFET Input Stage Provides:
- Very High ZI = 1.5T (1.5 x 1012) (Typ)
- Very Low II . . . . . . . . . . . . . 5pA (Typ) at 15V Operation
. . . . . . . . . . . . . . . . . . . . . . . 2pA (Typ) at 5V Operation
• Common-Mode Input Voltage Range Includes Negative Supply Rail; Input Terminals Can Be Swung 0.5V Below Negative Supply Rail
• CMOS Output Stage Permits Signal Swing to Either (or Both) Supply Rails
- Very High ZI = 1.5T (1.5 x 1012) (Typ)
- Very Low II . . . . . . . . . . . . . 5pA (Typ) at 15V Operation
. . . . . . . . . . . . . . . . . . . . . . . 2pA (Typ) at 5V Operation
• Common-Mode Input Voltage Range Includes Negative Supply Rail; Input Terminals Can Be Swung 0.5V Below Negative Supply Rail
• CMOS Output Stage Permits Signal Swing to Either (or Both) Supply Rails
CA3160 Typical Application
• Ground Referenced Single Supply Amplifiers
• Fast Sample Hold Amplifiers
• Long Duration Timers/Monostables
• High Input Impedance Wideband Amplifiers
• Voltage Followers (e.g., Follower for Single Supply D/A Converter)
• Wien-Bridge Oscillators
• Voltage Controlled Oscillators
• Photo Diode Sensor Amplifiers
• Fast Sample Hold Amplifiers
• Long Duration Timers/Monostables
• High Input Impedance Wideband Amplifiers
• Voltage Followers (e.g., Follower for Single Supply D/A Converter)
• Wien-Bridge Oscillators
• Voltage Controlled Oscillators
• Photo Diode Sensor Amplifiers

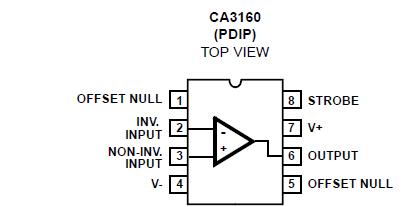

CA3160 Connection Diagram
CA3160
