CA3194

Features:

• All PAL Luminance and Chrominance Processing Circuitry on a Single Chip in a 24-Lead Plastic Package
• Phase-Locked Subcarrier Regeneration Utilizing Sample-and-Hold
• DC Controls for Brightness, Contrast, and Color Saturation Functions
• Input for Average Beam-Current Limiting
• Contrast Control Having Excellent Tracking of Luma and Chroma Channels
• Low-lmpedance RGB Outputs with Excellent Tracking for Direct Coupling to Video Driver Circuitry

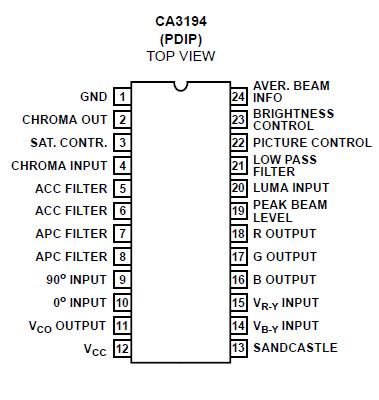

Pinout




Specifications

Supply Voltage and Current
Pin 12 Voltage Range . . . . . . . . . . . . . . . . 11V (Min) to 13V (Max)
Pin 12 Current Range . . . . . . . . . . . . . 44mA (Typ) to 60mA (Max)
Power Dissipation
Up to T_A = +25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 825mW
Above T_A = +25C. . . . . . . . . . . . . . . . Derate Linearly 8.7mW/
Junction Temperature (Plastic Package) . . . . . . . . . . . . . . . +150
Storage Temperature Range . . . . . . . . . . . . . . . . . -65oC to +150
Lead Temperature (Soldering 10s) . . . . . . . . . . . . . . . . . . . . +300


Description

The Harris CA3194E is a silicon monolithic integrated circuit designed to perform all of the signal processing functions for both the chroma and luminance signals of PAL color television receivers.
CA3194 performs all the functions needed between the video detector and the video RGB output stages. DC contrast, brightness, and saturation controls and average beam limiting functions are included. The RGB buffer stages are capable of delivering 5mA of current into the video output stages.
