CA3420
-
Suppliers
DataSheet
General Description
CA3420 Maximum Ratings
Supply Voltage (V+ to V-). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15V
DC Input Voltage . . . . . . . . . . . . . . . . . . . . . . (V+ + 8V) to (V- -0.5V)
Input Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1mA
Output Short Circuit Duration (Note 1). . . . . . . . . . . . . . . . Indefinite
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15V
DC Input Voltage . . . . . . . . . . . . . . . . . . . . . . (V+ + 8V) to (V- -0.5V)
Input Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1mA
Output Short Circuit Duration (Note 1). . . . . . . . . . . . . . . . Indefinite
CA3420 Features
• 2V Supply at 300A Supply Current
• 1pA Input Current (Typ) (Essentially Constant to 85)
• Rail-to-Rail Output Swing (Drive ±2mA into 1k Load)
• Pin Compatible with 741 Operational Amplifiers
• 1pA Input Current (Typ) (Essentially Constant to 85)
• Rail-to-Rail Output Swing (Drive ±2mA into 1k Load)
• Pin Compatible with 741 Operational Amplifiers
CA3420 Typical Application
• pH Probe Amplifiers
• Picoammeters
• Electrometer (High Z) Instruments
• Portable Equipment
• Inaccessible Field Equipment
• Battery-Dependent Equipment (Medical and Military)
• Picoammeters
• Electrometer (High Z) Instruments
• Portable Equipment
• Inaccessible Field Equipment
• Battery-Dependent Equipment (Medical and Military)

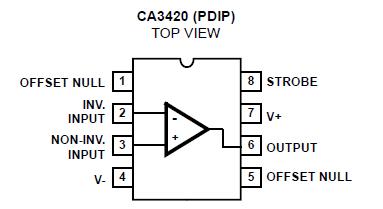

CA3420 Connection Diagram
