CAT24FC01

Features: *400 kHz (2.5 V) and 100 kHz (1.8 V) I2C bus compatible*1.8 to 5.5 volt operation*Low power CMOS technology*16-byte page write buffer*Industrial and extended temperature ranges*Self-timed write cycle with auto-clear*1,000,000 program/erase cycles*100 year data retention*8-pin DIP, 8-pin ...

product image

CAT24FC01 Picture
See larger image
SeekIC No. : 004310540 Detail

CAT24FC01: Features: *400 kHz (2.5 V) and 100 kHz (1.8 V) I2C bus compatible*1.8 to 5.5 volt operation*Low power CMOS technology*16-byte page write buffer*Industrial and extended temperature ranges*Self-timed ...

CAT24FC01 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CAT24FC01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*400 kHz (2.5 V) and 100 kHz (1.8 V) I2C bus compatible
*1.8 to 5.5 volt operation
*Low power CMOS technology
*16-byte page write buffer
*Industrial and extended temperature ranges
*Self-timed write cycle with auto-clear
*1,000,000 program/erase cycles
*100 year data retention
*8-pin DIP, 8-pin SOIC,  8-pin TSSOP and MSOP packages
  - "Green" package option available
*256 x 8 memory organization
*Hardware write protect


Pinout

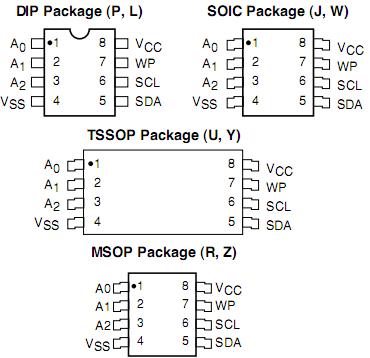

Connection Diagram


Specifications

Temperature Under Bias ............... 55°C to +125°C
Storage Temperature..................... 65°C to +150°C
Voltage on Any Pin with
   Respect to Ground(1)................2.0V to +VCC + 2.0V
VCC with Respect to Ground ................ 2.0V to +7.0V
Package Power Dissipation
   Capability (TA = 25°C) ...................................... 1.0W
Lead Soldering Temperature (10 seconds) .........300°C
Output Short Circuit Current(2)........................... 100mA


Description

    The CAT24FC01 is a 1-kb Serial CMOS EEPROM internally organized as 128 words of 8 bits each. Catalyst's advanced CMOS technology substantially reduces device power requirements.The CAT24FC01 features a 16-byte page write buffer.The device operates via the I2C bus serial interface and is available in 8-pin DIP, 8-pin SOIC,  8-pin TSSOP and MSOP packages.
