Part Number: CAT24FC02GLETE13REV
Description: The CAT24FC02 is a 2-kb Serial CMOS EEPROMinternally organized as 256 words of 8 bits each. Catalyst'sad...
- Table of contents:
CAT24FC02GLETE13REV
-
Suppliers
DataSheet
General Description
CAT24FC02GLETE13REV General Description
The CAT24FC02 is a 2-kb Serial CMOS EEPROM internally organized as 256 words of 8 bits each. Catalyst's advanced CMOS technology substantially reduces device power requirements.
The CAT24FC02 features a 16-byte page write buffer. The device operates via the I2C bus serial interface and is available in 8-pin DIP, SOIC, TSSOP and MSOP packages.
CAT24FC02GLETE13REV Maximum Ratings
Temperature Under Bias .........................................................55°C to +125°C
Storage Temperature ....................... ......................................65°C to +150°C
Voltage on Any Pin withRespect to Ground(1) .....................2.0 V to VCC+ 2.0 V
VCC with Respect to Ground ............. .........................................2.0 V to +7.0 V
Package Power DissipationCapability (TA = 25°C) .................................. ...1.0 W
Lead Soldering Temperature (10 seconds) ...... .........................................300°C
Output Short Circuit Current(2) ....................... .........................................100 mA
CAT24FC02GLETE13REV Features
400 kHz (2.5 V) I2C bus compatible
2.5 to 5.5 volt operation
Low power CMOS technology
16-byte page write buffer
Industrial and extended temperature ranges
Self-timed write cycle with auto-clear
1,000,000 program/erase cycles
100 year data retention
8-pin DIP, SOIC, TSSOP and MSOP packages- "Green" package option available
256 x 8 memory organization
Hardware write protect

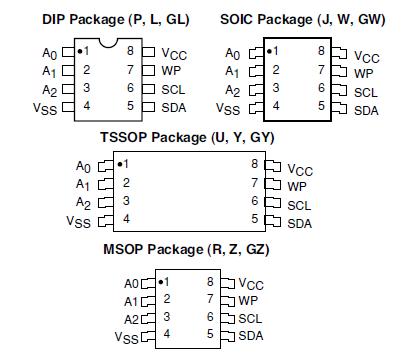

CAT24FC02GLETE13REV Connection Diagram
CAT24FC02GLETE13REV-E
PDF/DataSheet Download
- Datasheet: CAT24FC02GLETE13REV-E
- File Size: 459036 KB
- Manufacturer: CATALYST [Catalyst Semiconductor]
- Click here to Download
