Part Number: CAT24FC16RD4ETE13REV-F
Description: The CAT24FC16 is a 16-kb Serial CMOS EEPROMinternally organized as 2048 words of 8 bits each.Catalysat's advanced CMOS...
- Table of contents:
CAT24FC16RD4ETE13REV-F
-
Suppliers
DataSheet
General Description
CAT24FC16RD4ETE13REV-F General Description
The CAT24FC16 is a 16-kb Serial CMOS EEPROMinternally organized as 2048 words of 8 bits each.Catalysat's advanced CMOS technology substantiallyreduces device power requirements. The CAT24FC16features a 16-byte page write buffer. The device operatesvia the I2C bus serial interface and is available in 8-pinDIP, 8-pin SOIC, 8-pin TSSOP, 8-pin MSOP and TDFNpackages.
CAT24FC16RD4ETE13REV-F Maximum Ratings
Temperature Under Bias ...................55°C to +125°C
Storage Temperature ....................... 65°C to +150°C
Voltage on Any Pin with
Respect to Ground(1) ............2.0 V to VCC+ 2.0 V
VCC with Respect to Ground ............. 2.0 V to +7.0 V
Package Power Dissipation
Capability (TA = 25°C) ....................................... 1.0 W
Lead Soldering Temperature (10 seconds) ...... 300°C
Output Short Circuit Current(2) ....................... 100 mA
Storage Temperature ....................... 65°C to +150°C
Voltage on Any Pin with
Respect to Ground(1) ............2.0 V to VCC+ 2.0 V
VCC with Respect to Ground ............. 2.0 V to +7.0 V
Package Power Dissipation
Capability (TA = 25°C) ....................................... 1.0 W
Lead Soldering Temperature (10 seconds) ...... 300°C
Output Short Circuit Current(2) ....................... 100 mA
CAT24FC16RD4ETE13REV-F Features
400 kHz (2.5 V) and 100 kHz (1.8 V) I2C buscompatible
1.8 to 5.5 volt operation
Low power CMOS technology
16-byte page write buffer
Industrial and extended temperature ranges
Self-timed write cycle with auto-clear
1,000,000 program/erase cycles
100 year data retention
8-pin DIP, 8-pin SOIC, 8-pin TSSOP, 8-pin MSOPand TDFN packages- "Green" package option available
256 x 8 memory organization
Hardware write protect

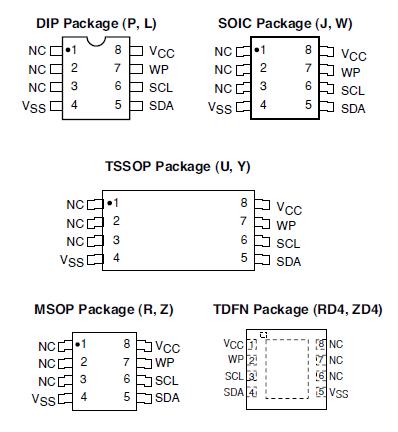

CAT24FC16RD4ETE13REV-F Connection Diagram
CAT24FC16RD4ETE13REV-F
