Part Number: CAT24FC32
Description: The CAT24FC32 is a 32K-bit Serial CMOS EEPROM internally organized as 4,096 words of 8 bits each. Cata...
- Table of contents:
CAT24FC32
-
Suppliers
DataSheet
General Description
CAT24FC32 General Description
The CAT24FC32 is a 32K-bit Serial CMOS EEPROM internally organized as 4,096 words of 8 bits each. Catalyst's advanced CMOS technology substantially reduces device power requirements. The CAT24FC32 Catalyst Semiconductor is licensed by Philips Corporation to carry the I2C Bus Protocol.features a 32-byte page write buffer. The device operates via the I2C bus serial interface and is available in 8-pin DIP, SOIC and TDFN packages
CAT24FC32 Maximum Ratings
Temperature Under Bias ................. 55°C to +125°C
Storage Temperature ....................... 65°C to +150°C
Voltage on Any Pin with
Respect to Ground(1) ......................2.0V to +VCC+ 2.0V
VCC with Respect to Ground .................... 2.0V to +7.0V
CAT24FC32 Features
Fast mode I2C bus compatible*
Max clock frequency:
- 400KHz for VCC=2.5V to 5.5V
Schmitt trigger filtered inputs for noise suppression
Low power CMOS technology
32-byte page write buffer
Self-timed write cycle with auto-clear|
Industrial and extended
temperature ranges
Write protect feature entire array protected when WP at VIH
1,000,000 program/erase cycles
100 year data retention
8-pin DIP, 8-pin SOIC (JEDEC), 8-pin SOIC
(EIAJ), 8-pin TSSOP and TDFN packages

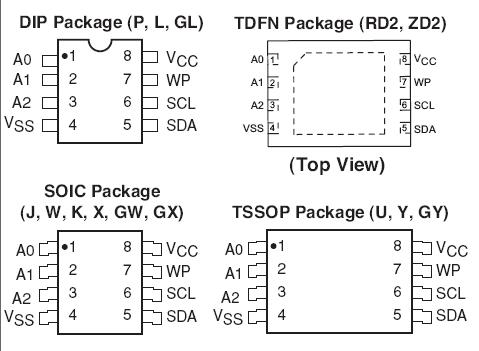

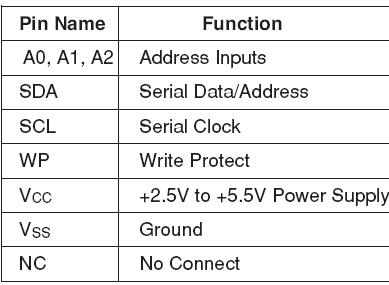

CAT24FC32 Connection Diagram
CAT24FC32
