General Description
CAT24FC32A General Description
The CAT24FC32A is a 32K-bit Serial CMOS EEPROM internally organized as 4Kx8 bits. The device is compatible with Fast-mode I2C bus specification and operates down to 1.8V with a bit rate up to 400 kbit/s. Extended addressing capability allows up to 8 devices to share the same bus. Catalyst's advanced CMOS technology substantially reduces device power requirements. The device is optimized for high performance applications, where low power, low voltage and high speed operation are required.
CAT24FC32A is available in 8-pin DIP, 8-pin SOIC (JEDEC and EIAJ) and 8-pin TSSOP packages.
CAT24FC32A Maximum Ratings
Temperature Under Bias ............... 55°C to +125°C
Storage Temperature..................... 65°C to +150°C
Voltage on Any Pin with
Respect to Ground(1)................2.0V to +VCC + 2.0V
VCC with Respect to Ground ................ 2.0V to +7.0V
Package Power Dissipation
Capability (TA = 25°C) ...................................... 1.0W
Lead Soldering Temperature (10 secs) .............. 300°C
Output Short Circuit Current(2)........................... 100mA
Storage Temperature..................... 65°C to +150°C
Voltage on Any Pin with
Respect to Ground(1)................2.0V to +VCC + 2.0V
VCC with Respect to Ground ................ 2.0V to +7.0V
Package Power Dissipation
Capability (TA = 25°C) ...................................... 1.0W
Lead Soldering Temperature (10 secs) .............. 300°C
Output Short Circuit Current(2)........................... 100mA
CAT24FC32A Features
*Fast mode I2C bus compatible*
*Max clock frequency:
400 kHz for VCC=1.8V to 3.6V
*Hardware write protect for entire array
*Cascadable for up to eight devices
*32-Byte page or byte write modes
*Self-timed write cycle with autoclear
*5 ms max write cycle time
*Random and sequential read modes
*Schmitt trigger and spike suppression at SDA
and SCL inputs
*Output slope control to eliminate ground bounce
*Zero standby current
*Commercial temperature range
*1,000,000 program/erase cycles
*100 years data retention
*8-pin PDIP, 8-pin SOIC (150 and 200 mil) and
8-pin TSSOP packages
*"Green" package options available
*Max clock frequency:
400 kHz for VCC=1.8V to 3.6V
*Hardware write protect for entire array
*Cascadable for up to eight devices
*32-Byte page or byte write modes
*Self-timed write cycle with autoclear
*5 ms max write cycle time
*Random and sequential read modes
*Schmitt trigger and spike suppression at SDA
and SCL inputs
*Output slope control to eliminate ground bounce
*Zero standby current
*Commercial temperature range
*1,000,000 program/erase cycles
*100 years data retention
*8-pin PDIP, 8-pin SOIC (150 and 200 mil) and
8-pin TSSOP packages
*"Green" package options available

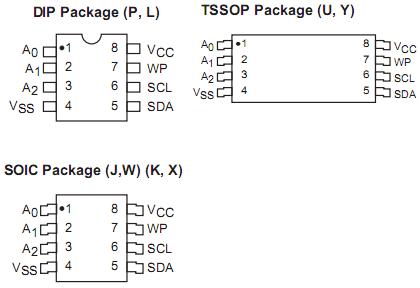

CAT24FC32A Connection Diagram
CAT24FC32A
PDF/DataSheet Download
- Datasheet: CAT24FC32A
- File Size: 81725 KB
- Manufacturer: CATALYST [Catalyst Semiconductor]
- Click here to Download
