General Description
CAT24WC09 General Description
The CAT24WC03/05/09/17 is a 2K/4K/8K/16K-bit Serial CMOS E2PROM internally organized as 256/512/1024/ 2048 words of 8 bits each. Catalyst's advanced CMOS technology substantially reduces device power requirements. The CAT24WC03/05/09/17 features a 16-byte page write buffer. The device operates via the I2C bus serial interface, has a special write protection feature, and is available in 8-pin DIP or 8-pin SOIC
CAT24WC09 Maximum Ratings
Temperature Under Bias ................. 55°C to +125°C
Storage Temperature ..................... 65°C to +150°C
Voltage on Any Pin with
Respect to Ground(1) ............. 2.0V to +VCC + 2.0V
VCC with Respect to Ground ................. 2.0V to +7.0V
Package Power Dissipation
Capability (Ta = 25°C) ..................................... 1.0W
Lead Soldering Temperature (10 secs) ................ 300°C
Output Short Circuit Current(2) ............................ 100mA
Storage Temperature ..................... 65°C to +150°C
Voltage on Any Pin with
Respect to Ground(1) ............. 2.0V to +VCC + 2.0V
VCC with Respect to Ground ................. 2.0V to +7.0V
Package Power Dissipation
Capability (Ta = 25°C) ..................................... 1.0W
Lead Soldering Temperature (10 secs) ................ 300°C
Output Short Circuit Current(2) ............................ 100mA
CAT24WC09 Features
` 400 KHZ I2C Bus Compatible*
` 1.8 to 6.0Volt Operation
` Low Power CMOS Technology
` Write Protect Feature
Top 1/2 Array Protected When WP at VIH
` 16-Byte Page Write Buffer
` Self-Timed Write Cycle with Auto-Clear
` 1,000,000 Program/Erase Cycles
` 100 Year Data Retention
` 8-pin DIP, 8-pin SOIC and 8-pin TSSOP Package
` Commercial, Industrial and Automotive
Temperature Ranges
` 1.8 to 6.0Volt Operation
` Low Power CMOS Technology
` Write Protect Feature
Top 1/2 Array Protected When WP at VIH
` 16-Byte Page Write Buffer
` Self-Timed Write Cycle with Auto-Clear
` 1,000,000 Program/Erase Cycles
` 100 Year Data Retention
` 8-pin DIP, 8-pin SOIC and 8-pin TSSOP Package
` Commercial, Industrial and Automotive
Temperature Ranges

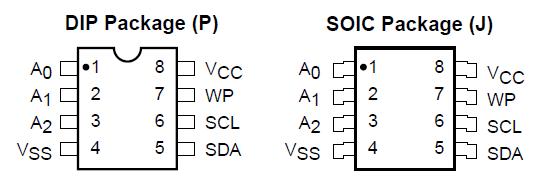

CAT24WC09 Connection Diagram
CAT24WC09J
