Part Number: CAT25020
Description: The CAT25010/20/40 is a 1K/2K/4K Bit SPI Serial CMOS EEPROM inte...
- Table of contents:
CAT25020
-
Suppliers
DataSheet
General Description
CAT25020 General Description
The CAT25010/20/40 is a 1K/2K/4K Bit SPI Serial CMOS EEPROM internally organized as 128x8/256x8/ 512x8 bits. Catalyst's advanced CMOS Technology substantially reduces device power requirements. The CAT25010/20/40 features a 16-byte page write buffer.The device operates via the SPI bus serial terface and is enabled though a Chip Select (CS). In addition to the Chip Select, the clock input (SCK), data in (SI) and data out (SO) are required to access the device. The HOLD pin may be used to suspend any serial communication without resetting the serial sequence. The CAT25010/ 20/40 is designed with software and hardware write protection features including Block Write protection. The device is available in 8-pin DIP, 8-pin SOIC, 8-pin MSOP and 8-pin TSSOP packages.
CAT25020 Maximum Ratings
Temperature Under Bias ................. 55°C to +125°C
Storage Temperature....................... 65°C to +150°C
Voltage on any Pin with
Respect to VSS(1)..................2.0V to +VCC +2.0V
VCC with Respect to VSS ................... 2.0V to +7.0V
Package Power Dissipation
Capability (Ta = 25°C) ................................... 1.0W
Lead Soldering Temperature (10 secs) ............ 300°C
Output Short Circuit Current(2)....................... 100 mA
Storage Temperature....................... 65°C to +150°C
Voltage on any Pin with
Respect to VSS(1)..................2.0V to +VCC +2.0V
VCC with Respect to VSS ................... 2.0V to +7.0V
Package Power Dissipation
Capability (Ta = 25°C) ................................... 1.0W
Lead Soldering Temperature (10 secs) ............ 300°C
Output Short Circuit Current(2)....................... 100 mA
CAT25020 Features
10 MHz SPI compatible
1.8 to 6.0 volt operation
Hardware and software protection
Low power CMOS technology
SPI modes (0,0 & 1,1)*
Commercial, industrial, automotive and extended temperature ranges
1,000,000 program/erase cycles
100 year data retention
Self-timed write cycle
8-Pin DIP/SOIC, 8-Pin TSSOP and 8-Pin MSOP
16-byte page write buffer
Block write protection
Protect 1/4, 1/2 or all of EEPROM array
1.8 to 6.0 volt operation
Hardware and software protection
Low power CMOS technology
SPI modes (0,0 & 1,1)*
Commercial, industrial, automotive and extended temperature ranges
1,000,000 program/erase cycles
100 year data retention
Self-timed write cycle
8-Pin DIP/SOIC, 8-Pin TSSOP and 8-Pin MSOP
16-byte page write buffer
Block write protection
Protect 1/4, 1/2 or all of EEPROM array
CAT25020LA-GT3
PDF/DataSheet Download
- Datasheet: CAT25020LA-GT3
- File Size: 569804 KB
- Manufacturer: CATALYST [Catalyst Semiconductor]
- Click here to Download
- ·CAT102
- CATALYST [Catalyst Semiconductor]
- Precision, Adjustable Shunt Regulator (600mV Reference)
- 83422 KB
- ·CAT1021
- CATALYST [Catalyst Semiconductor]
- Supervisory Circuits with I2C Serial 2k-bit CMOS EEPROM, Manual Reset and Watchdog Timer
- 153559 KB
- ·CAT1021JE-25TE13
- CATALYST [Catalyst Semiconductor]
- Supervisory Circuits with I2C Serial 2k-bit CMOS EEPROM, Manual Reset and Watchdog Timer
- 153559 KB
- ·CAT1021JE-28TE13
- CATALYST [Catalyst Semiconductor]
- Supervisory Circuits with I2C Serial 2k-bit CMOS EEPROM, Manual Reset and Watchdog Timer
- 153559 KB
- ·CAT1021JE-30TE13
- CATALYST [Catalyst Semiconductor]
- Supervisory Circuits with I2C Serial 2k-bit CMOS EEPROM, Manual Reset and Watchdog Timer
- 153559 KB
- ·CAT1021JE-42TE13
- CATALYST [Catalyst Semiconductor]
- Supervisory Circuits with I2C Serial 2k-bit CMOS EEPROM, Manual Reset and Watchdog Timer
- 153559 KB
- ·CAT1021JE-45TE13
- CATALYST [Catalyst Semiconductor]
- Supervisory Circuits with I2C Serial 2k-bit CMOS EEPROM, Manual Reset and Watchdog Timer
- 153559 KB
- ·CAT1021JI-25TE13
- CATALYST [Catalyst Semiconductor]
- Supervisory Circuits with I2C Serial 2k-bit CMOS EEPROM, Manual Reset and Watchdog Timer
- 153559 KB
CAT25020 Relative Products

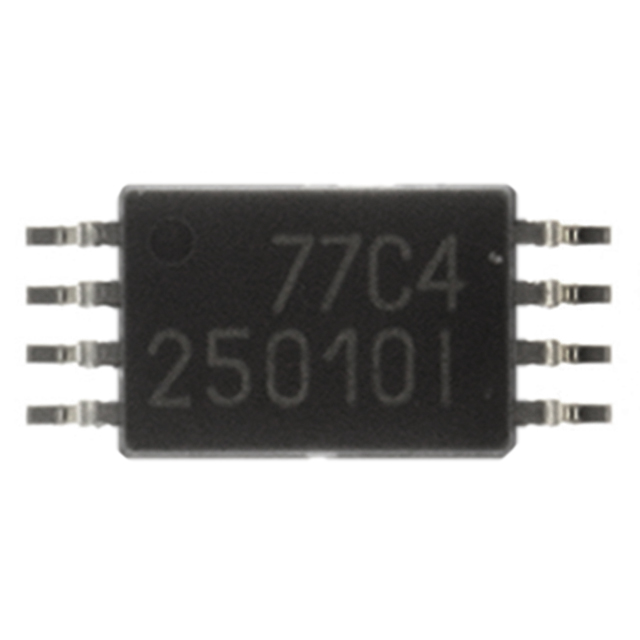

CAT25010YI-GT3
