CAT93 HC46

Features: High speed operation: 4 MHz @ 5.0 V 1.8 to 5.5 volt operation Selectable x8 or x16 word organization Sequential Read Software write protection Power-up inadvertent write protection Low power CMOS technology 1,000,000 program/erase cycles 100 year data retention Industrial and extended te...

product image

CAT93 HC46 Picture
See larger image
SeekIC No. : 004310787 Detail

CAT93 HC46: Features: High speed operation: 4 MHz @ 5.0 V 1.8 to 5.5 volt operation Selectable x8 or x16 word organization Sequential Read Software write protection Power-up inadvertent write protection Low pow...

CAT93 HC46 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CAT93 HC46
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 High speed operation: 4 MHz @ 5.0 V
1.8 to 5.5 volt operation
Selectable x8 or x16 word organization
Sequential Read
Software write protection
Power-up inadvertent write protection
Low power CMOS technology
1,000,000 program/erase cycles
100 year data retention
Industrial and extended temperature ranges
8-Lead PDIP, SOIC, MSOP and TSSOP
    packages

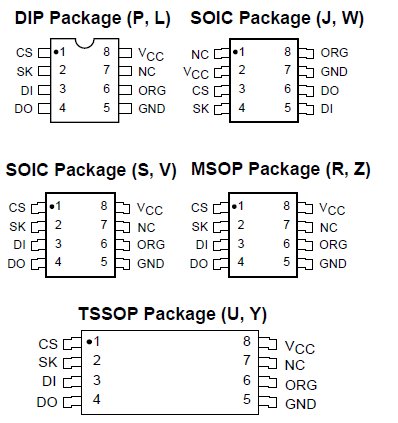

Pinout

Connection Diagram


Specifications

Temperature Under Bias .................. -55°C to +125°C
Storage Temperature ........................ -65°C to +150°C
Pin with Respect to Ground(1) .... -2.0 V to VCC + 2.0 V
VCC with Respect to Ground ................ -2.0 V to 7.0 V
Lead Soldering Temperature (10 secs) ............ 300°C
Output Short Circuit Current(2) ........................ 100 mA


Description

The CAT93HC46 is a 1-kb Serial EEPROM memory device which is configured as registers of either 16 bits (ORG pin at VCC) or 8 bits (ORG pin at GND). Each
register can be written (or read) serially by using the DI (or DO) pin. The CAT93HC46 is manufactured using Catalyst's advanced CMOS EEPROM floating gate technology. The device is designed to endure 1,000,000 program/erase cycles and has a data retention of 100 years. The CAT93HC46 is available in 8-pin DIP, SOIC, MSOP or TSSOP packages.
