Purchase CBRHD, In-stock CBRHD From SeekIC.
Part Number: CBRHD
Description: The CENTRAL SEMICONDUCTOR CBRHD series types are silicon full wave bridge rectifiers mounted in a dura...
- Table of contents:
CBRHD
-
Suppliers
DataSheet
General Description
CBRHD General Description
The CENTRAL SEMICONDUCTOR CBRHD series types are silicon full wave bridge rectifiers mounted in a durable epoxy surface mount molded case, utilizing glass passivated chips.
CBRHD Maximum Ratings
| CBRHD | CBRHD | CBRHD | CBRHD | ||||
| SYMBOL | -02 | -04 | -06 | -10* | UNITS | ||
| Peak Repetitive Reverse Voltage | VRRM | 200 | 400 | 600 | 1000 | V | |
| DC Blocking Voltage | VR | 200 | 400 | 600 | 1000 | V | |
| RMS Reverse Voltage | VR(RMS) | 140 | 280 | 420 | 700 | V | |
| Average Forward Current (TA=40)(1) | IO | 0.5 | A | ||||
| Average Forward Current (TA=40)(2) | IO | 0.8 | A | ||||
| Peak Forward Surge Current | IFSM | 30 | A | ||||
| Operating and Storage | |||||||
| Junction Temperature | TJ,Tstg | -65 to +150 | |||||
CBRHD Features
• Truly efficient use of board space, requires only 42mm² of board space vs. 120mm² of board space for industry standard 1.0 Amp surface
mount bridge rectifier.
• 50% higher density (amps/mm²) than the industry standard 1.0 Amp surface mount bridge rectifier.
• Glass passivated chips for high reliability.
mount bridge rectifier.
• 50% higher density (amps/mm²) than the industry standard 1.0 Amp surface mount bridge rectifier.
• Glass passivated chips for high reliability.
CBRHD
PDF/DataSheet Download
- Datasheet: CBRHD
- File Size: 147392 KB
- Manufacturer: CENTRAL [Central Semiconductor Corp]
- Click here to Download
- ·CBR10-010P
- CENTRAL [Central Semiconductor Corp]
- SILICON BRIDGE RECTIFIER
- 83559 KB
- ·CBR10-020P
- CENTRAL [Central Semiconductor Corp]
- SILICON BRIDGE RECTIFIER
- 83559 KB
- ·CBR10-040P
- CENTRAL [Central Semiconductor Corp]
- SILICON BRIDGE RECTIFIER
- 83559 KB
- ·CBR10-060P
- CENTRAL [Central Semiconductor Corp]
- SILICON BRIDGE RECTIFIER
- 83559 KB
- ·CBR10-080P
- CENTRAL [Central Semiconductor Corp]
- SILICON BRIDGE RECTIFIER
- 83559 KB
- ·CBR1-010
- CENTRAL [Central Semiconductor Corp]
- SILICON BRIDGE RECTIFIERS
- 46027 KB
- ·CBR10-100P
- CENTRAL [Central Semiconductor Corp]
- SILICON BRIDGE RECTIFIER
- 83559 KB
- ·CBR1-020
- CENTRAL [Central Semiconductor Corp]
- SILICON BRIDGE RECTIFIERS
- 46027 KB
CBRHD Relative Products
CB-RBEPAI-02-A
KIT BLUETOOTH ETH PORT ADAPTER
CB-RBEPAI-02-0
BLUETOOTH ETHERNET PORT ADAPTER
CBR6LH-C0
CABLE TIE LIGHT HEAVY BLK 20.9"
CBR6LH-C
CABLE TIE LIGHT HEAVY NAT 20.9"

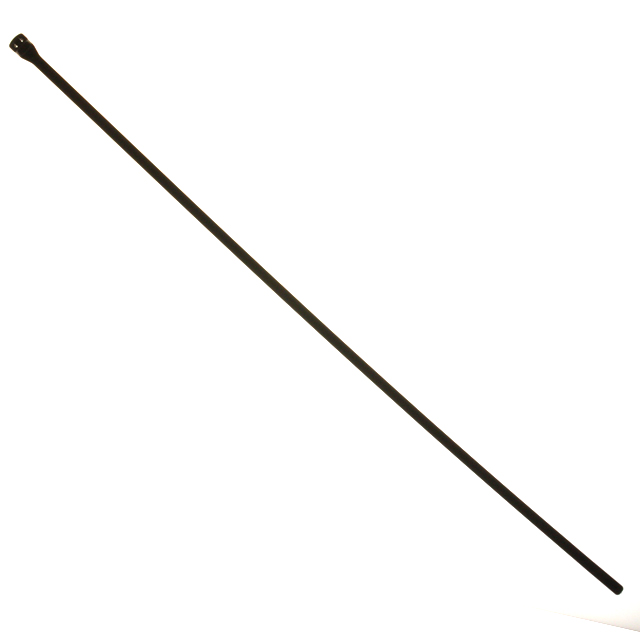

CBR4S-M0
