CBT6800

Features: • 5 switch connection between two ports• TTL compatible input and output levels• Outputs are precharged by bias voltage to minimize signal distortion during live insertion• Latch-up protection exceeds 100 mA per JESD78• ESD protection exceeds 2000 V HBM per...

product image

CBT6800 Picture
See larger image
SeekIC No. : 004310894 Detail

CBT6800: Features: • 5 switch connection between two ports• TTL compatible input and output levels• Outputs are precharged by bias voltage to minimize signal distortion during live inserti...

CBT6800 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CBT6800
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 5 switch connection between two ports
• TTL compatible input and output levels
• Outputs are precharged by bias voltage to minimize signal distortion during live insertion
• Latch-up protection exceeds 100 mA per JESD78
• ESD protection exceeds 2000 V HBM per JESD22-A114, 200 V MM per JESD22-A115 and 1000 V CDM per JESD22-C101

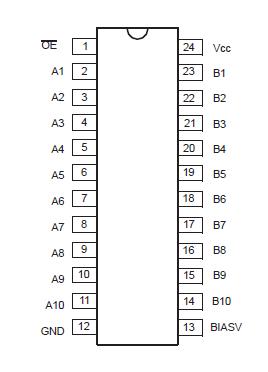

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS RATING UNIT
VCC DC supply voltage   0.5 to +7.0 V
IIK DC input diode current   50 mA
VI DC input voltage3   1.2 to +7.0 V
ISW DC clamp diode current VO < 0 50 mA
Tstg Storage temperature range   65 to 150
BiasV DC voltage range   0.5 to 6.0 V



Description

The CBT6800 provides ten bits of high-speed TTL-compatible bus switching. The low on-state resistance of the switch allows bi-directional connections to be made while adding near-zero propagation delay. The device also precharges the B port to a user-selectable bias voltage (BIASV) to minimize live-insertion noise.

The CBT6800 is organized as one 10-bit switch with a single enable (ON) input. When ON is low, the switch is on and port A is connected to port B. When ON is high, the switch between port A and port B is open and the B port is precharged to BIASV through the equivalent of a 10 kW resistor.

The CBT6800 is characterized for operation from 40 to 85.
