CC1050

Features: • True single chip UHF RF transmitter• Very low current consumption• Frequency range 300 1000 MHz• Programmable output power 20 to 12 dBm• Small size (TSSOP-24 package)• Low supply voltage (2.1 V to 3.6 V)• Very few external components required&...

product image

CC1050 Picture
See larger image
SeekIC No. : 004310913 Detail

CC1050: Features: • True single chip UHF RF transmitter• Very low current consumption• Frequency range 300 1000 MHz• Programmable output power 20 to 12 dBm• Small size (TSSOP-...

CC1050 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CC1050
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• True single chip UHF RF transmitter
• Very low current consumption
• Frequency range 300 1000 MHz
• Programmable output power 20 to 12 dBm
• Small size (TSSOP-24 package)
• Low supply voltage (2.1 V to 3.6 V)
• Very few external components required
• Single-ended antenna connection
• FSK data rate up to 76.8 kBaud
• Complies with EN 300 220 and FCC CFR47 part 15
• Programmable frequency in 250 Hz steps makes crystal temperature drift
   compensation possible without TCXO
• Suitable for frequency hopping protocols
• Development Kit available
• Easy-to-use software for generating the CC1050 configuration data


Application

• Very low power UHF wireless data transmitters
• 315 / 433 / 868 and 915 MHz ISM/SRD band systems
• RKE Remote Keyless Entry
• Home automation
• Wireless alarm and security systems
• AMR Automatic Meter Reading
• Low power telemetry
• Game Controllers and advanced toys


Pinout

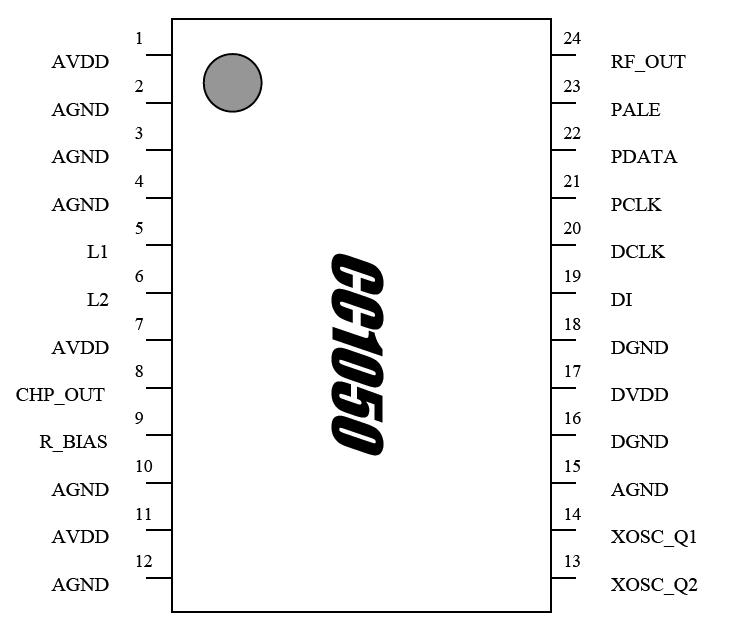

Connection Diagram


Specifications

Parameter Min. Max. Units Condition
Supply voltage, VDD 0.3 5.0 V
Voltage on any pin 0.3 VDD+0.3,
max 5.0		 V
Input RF level   10 dBm
Storage temperature range 50 150 °C
Reflow soldering temperature   260 °C T = 10 s



Description

CC1050 is a true single-chip UHF transmitter designed for very low power and Very low voltage wireless applications. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 315, 433, 868 and 915 MHz, but can easily be programmed for operation at other frequencies  in the 300-1000 MHz range.

The main operating parameters of CC1050 can be programmed via an easy-tointerface serial bus, thus making CC1050 a very flexible and easy to use transmitter.

In a typical system CC1050 will be used together with a microcontroller and a few external passive components.
