Position: Home  > All Categories> Integrated Circuits (ICs) > CC1070

CC1070

Features: • True single chip UHF RF transmitter• Frequency range 402 - 470 MHz and 804 - 940 MHz• Programmable output power• Low supply voltage (2.3 to 3.6 V)• Very few external components required• Small size (QFN 20 package)• Pb-free package• Data ...

product image

CC1070 Picture
See larger image
SeekIC No. : 004310915 Detail

CC1070: Features: • True single chip UHF RF transmitter• Frequency range 402 - 470 MHz and 804 - 940 MHz• Programmable output power• Low supply voltage (2.3 to 3.6 V)• Very few...

CC1070 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CC1070
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• True single chip UHF RF transmitter
• Frequency range 402 - 470 MHz and 804 - 940 MHz
• Programmable output power
• Low supply voltage (2.3 to 3.6 V)
• Very few external components required
• Small size (QFN 20 package)
• Pb-free package
• Data rate up to 153.6 kBaud
• OOK, FSK and GFSK data modulation
• Fully on-chip VCO
• Programmable frequency makes
  crystal temperature drift compensation possible without TCXO
• Suitable for frequency hopping systems
• Suited for systems targeting
  compliance with EN 300 220, FCC CFR47 part 15 and ARIB STD T-67
• Development kit available
• Easy-to-use software for generating the CC1070 configuration data


Application

• Narrowband low power UHF wireless data transmitters
• 402 / 424 / 426 / 429 / 433 / 447 / 449 /
469 / 868 and 915 MHz ISM/SRD band systems
• TPMS Tire Pressure Monitoring Systems
• AMR Automatic Meter Reading
• Wireless alarm and security systems
• Home automation
• Low power telemetry


Pinout

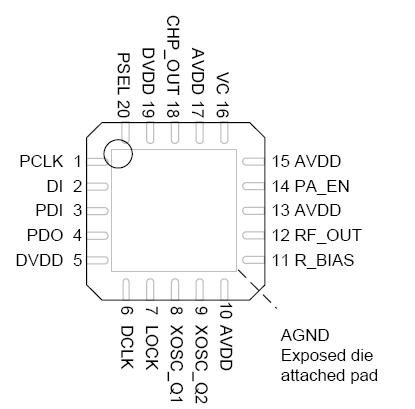

Connection Diagram


Specifications

Parameter Min. Max. Units Condition
Supply voltage, VDD -0.3 5.0 V All supply pins must have the
same voltage
Voltage on any pin -0.3 VDD+0.3,
max 5.0		 V
Storage temperature range 50 150 °C
Package body temperature   260 °C Norm: IPC/JEDEC J-STD-020C 1
Humidity non-condensing 5 85 %



Description

CC1070 is a true single-chip UHF transmitter designed for very low power and very low voltage wireless applications. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 402, 424, 426, 429, 433, 447, 449, 469, 868 and 915 MHz, but can easily be programmed for multi-channel operation at other frequencies in the 402 - 470 and 804 - 940 MHz range.

The CC1070 is especially suited for narrowband systems with channel spacings of 12.5 or 25 kHz complying with ARIB STD T-67 and EN 300 220.

The CC1070 main operating parameters can be programmed via a serial bus, thus making CC1070 a very flexible and easy to use transmitter. In a typical application CC1070 will be used together with a microcontroller and a few external passive components.

CC1070 is based on Chipcon's SmartRF® - 02 technology in 0.35 m CMOS.
