Product Details

Description



Features:

High-speed, bidirectional, multi-protocol parallel port:
•Hardware implementation of all modes of the IEEE STD (Standard) 1284 specification (including automatic negotiation)
-Centronics-compatible mode
-Reverse Byte mode
-Reverse Nibble mode
-ECP (extended capabilities port) mode with run-length encoding/decoding
-EPP (enhanced parallel port) mode
-Up to 2-Mbytes/sec. transfer rate in ECP and EPP modes
•64-byte parallel FIFO with DMA interface
-64-byte FIFO can accommodate up to 4 Kbytes of compressed data with RLE (run-length encoded) compression enabled
•Supports peripheral-side operation
•Data and control input/output pads support IEEE STD1284 level-2 interface specification
•CPU bus interface
-High-speed slave DMA handshake interface
-Three clocks per word DMA transfers
-On-the-fly data compression using RLE (run-length encoded) encoding and decoding
•8/16-bit data interface
-BYTESWAP input provides easy interface to both Big- and Little-Endian systems
-Vectored interrupts simplify interrupt service routines
•System clock up to 25 MHz
•CMOS technology enables high speed and low power
• Available in a 100-pin MQFP package
• Supports IEEE STD 1284 specification
• Hardware support of IEEE STD 1284 timings
• 64-byte FIFO
• Parallel port signals provide level-2 drive characteristics
• DMA channel
• ECP compression/decompression in hardware


Pinout

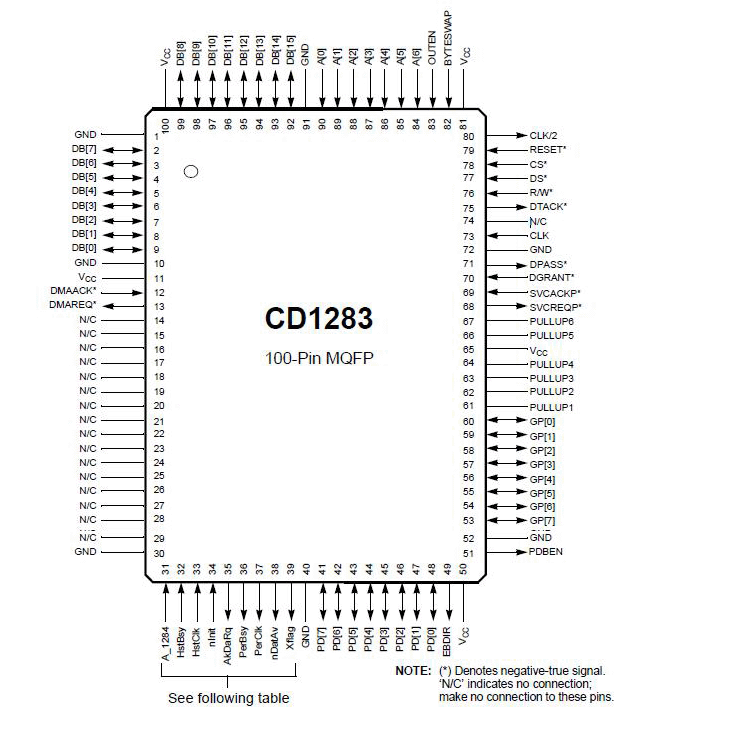

Connection Diagram


Specifications

• Supply voltage (VCC) ..................+7.0 V (volts)
• Input voltages, with respect to ground .....−0.5 V to VCC +0.5 V
• Operating temperature (TA) ................0 to 70
• Storage temperature ................. −65 to 150
• Power dissipation .................. .0.25 W (watt)
Note: Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only, and functional operation of the device at these or any conditions above those indicated in the recommended operating conditions is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
