CD4512BCM

Number of Bits :
Maximum Operating Temperature : + 125 C
Mounting Style : SMD/SMT
Package / Case : SOIC-16
Product : Multiplexer
Supply Voltage - Min : 3 V
Logic Family : CD4000
Number of Lines (Input / Output) : 8 / 1
Packaging : Rail
Supply Voltage - Max : 15 V
Propagation Delay Time : 750 ns at 5 V, 200 ns at 10 V, 150 ns at 15 V


Features:

` Wide supply voltage range: 3.0V to 15V
` High noise immunity: 0.45 VDD (typ.)
` 3-STATE output
` Low quiescent power dissipation:
   0.25 W/package (typ.) @ VCC = 5.0V
` Plug-in replacement for Motorola MC

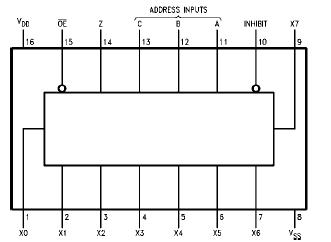

Pinout




Specifications

Supply Voltage (V_DD) ..........................−0.5 to +18 V_DC
Input Voltage (V_IN) ....................−0.5 to V_DD + 0.5 V_DC
Storage Temperature Range (TS) .....−65°C to +150°C
Power Dissipation (P _D)
Dual-In-Line .....................................................700 mW
Small Outline ....................................................500 mW
Lead Temperature, (T_L)
(Soldering, 10 seconds) .......................................260°C


Description

The CD4512BC buffered 8-channel data selector is a complementary MOS (CMOS) circuit constructed with N- and P-channel enhancement mode transistors. This data selector CD4512BCM is primarily used as a digital signal multiplexer selecting 1 of 8 inputs and routing the signal to a 3-STATE output. A high level at the Inhibit input forces a low level at the output. A high level at the Output Enable (OE) input forces the output into the 3-STATE condition. Low levels at both the Inhibit and (OE) inputs allow normal operation.
